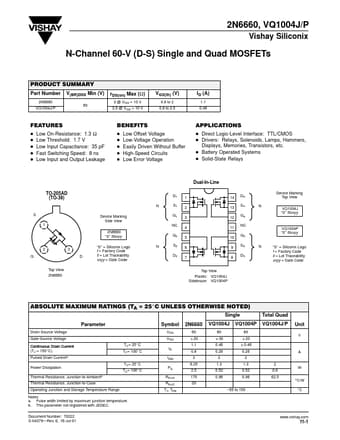

VQ1004J
FEATURES
D D D D D Low On-Resistance: 1.3 W Low Threshold: 1.7 V Low Input Capacitance: 35 p F Fast Switching Speed: 8 ns Low Input and Output Leakage
BENEFITS
D D D D D Low Offset Voltage Low-Voltage Operation Easily Driven Without Buffer High-Speed Circuits Low Error Voltage
APPLICATIONS
D Direct Logic-Level Interface: TTL/CMOS D Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc. D Battery Operated Systems D Solid-State Relays
Dual-In-Line TO-205AD (TO-39)
N S 1 2N6660 “S” fllxxyy 2 G 3 D “S” = Siliconix Logo f = Factory Code ll = Lot Traceability xxyy = Date Code N Device Marking Side View D1 S1 G1 NC G2 S2 D2 D4 S4 G4 NC G3 S3 D3 N N Device Marking Top View VQ1004J “S” fllxxyy
1 2 3 4 5 6 7
14 13 12 11 10 9 8
VQ1004P “S” fllxxyy
“S” = Siliconix Logo f = Factory Code ll = Lot Traceability xxyy = Date Code
Top View 2N6660
Top View Plastic: VQ1004J Sidebraze: VQ1004P
ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED)
Single...
