VO4154 Optocoupler

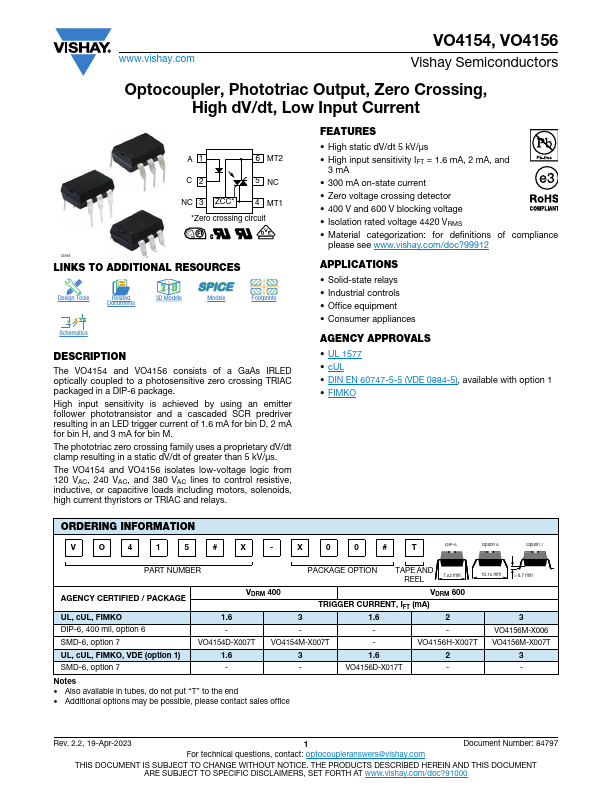

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com VO4154, VO4156 Vishay Semiconductors Optocoupler, Phototriac Output, Zero Crossing, High dV/dt, Low Input Current A1 6 MT2 C2 5 N.
The VO4154 and VO4156 consists of a GaAs IRLED optically coupled to a photosensitive zero crossing TRIAC packaged in a DIP-6 package.

📥 Download Datasheet

Preview of VO4154 PDF

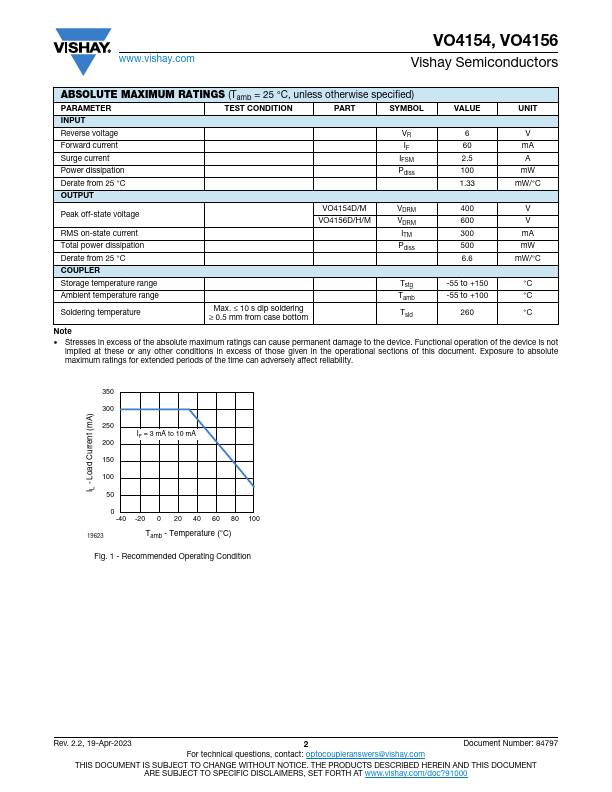

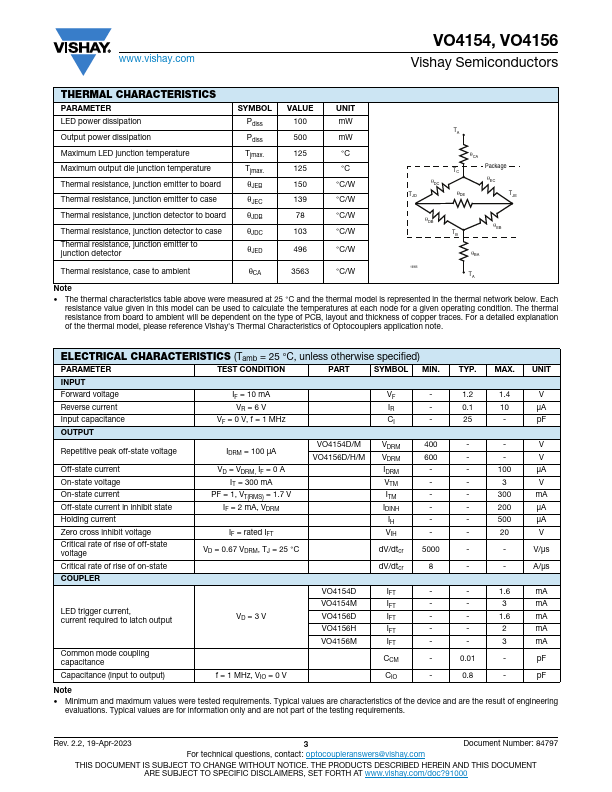

datasheet Preview Page 2 datasheet Preview Page 3

Features

* High static dV/dt 5 kV/μs
* High input sensitivity IFT = 1.6 mA, 2 mA, and 3 mA
* 300 mA on-state current
* Zero voltage crossing detector
* 400 V and 600 V blocking voltage
* Isolation rated voltage 4420 VRMS
* Material categorization: for d

Applications

* Solid-state relays
* Industrial controls
* Office equipment
* Consumer appliances AGENCY APPROVALS
* UL 1577
* cUL
* DIN EN 60747-5-5 (VDE 0884-5), available with option 1
* FIMKO ORDERING INFORMATION V O 4 1 5 # X - X 0 0
