VN2406L N-Channel MOSFETs

VN2406L Description

TN2410L, VN2406D/L, VN2410L/LS Vishay Siliconix N-Channel 240-V (D-S) MOSFETs PRODUCT SUMMARY Part Number TN2410L VN2406D VN2406L VN2410L VN2410LS .

VN2406L Features

* D Low On-Resistance: 3.5 W D Secondary Breakdown Free: 260 V D Low Power/Voltage Driven D Low Input and Output Leakage D Excellent Thermal Stability BENEFITS D Low Offset Voltage D Full-Voltage Operation D Easily Driven Without Buffer D Low Error Voltage D No High-Temperature “Run-Away” APPLICATIO

VN2406L Applications

* D High-Voltage Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Transistors, etc. D Telephone Mute Switches, Ringer Circuits D Power Supply, Converters D Motor Control TO-226AA (TO-92) S1 G2 D3 Top View TN2410L VN2406L VN2410L ’Device Marking Front View TN2410L “S” TN 2410L xxyy VN2406L “S” V

📥 Download Datasheet

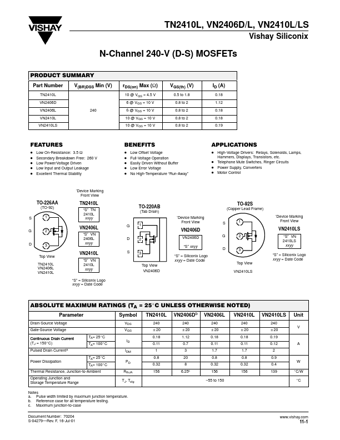

Preview of VN2406L PDF
datasheet Preview Page 2 datasheet Preview Page 3
