VLMW711AE-GS08, VLMW711 - 1 Watt Power SMD LED White

Vishay Siliconix

📥 Download Datasheet

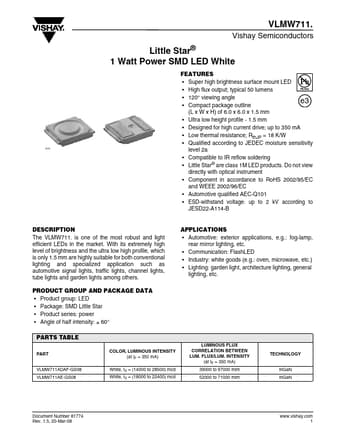

VLMW711AE-GS08 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMW711AE-GS08, VLMW711. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VLMW711AE-GS08, VLMW711
Manufacturer	Vishay Siliconix
File Size	254.22 KB
Description	1 Watt Power SMD LED White
Datasheet	VLMW711_VishaySiliconix.pdf
Note	This datasheet PDF includes multiple part numbers: VLMW711AE-GS08, VLMW711. Please refer to the document for exact specifications by model.

VLMW711AE-GS08 Product details

Description

The VLMW711. Product group: LED Package: SMD Little Star Product series: power

Features

Super high brightness surface mount LED.
High flux output; typical 50 lumens.
120° viewing angle e3.
Compact package outline (L x W x H) of 6.0 x 6.0 x 1.5 mm.
Ultra low height profile - 1.5 mm.
Designed for high current drive; up to 350 mA.
Low thermal resistance; RthJP = 18 K/W.
Qualified according to JEDEC moisture sensitivity level 2a.
Compatible to IR reflow soldering.
Little Star® are class 1M LED pr.
