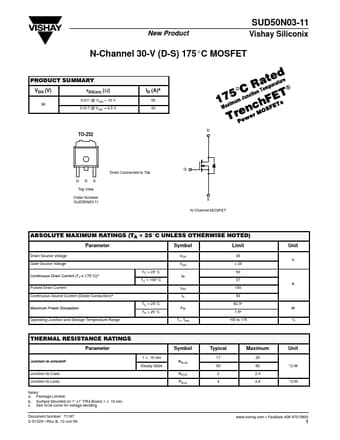

SUD50N03-11
New Product
Vishay Siliconix
N-Channel 30-V (D-S) 175_C MOSFET
PRODUCT SUMMARY
VDS (V)
30
rDS(on) (W)
0.011 @ VGS = 10 V 0.017 @ VGS = 4.5 V
ID (A)a
50 43
D
TO-252
G Drain Connected to Tab G D S
Top View Order Number: SUD50N03-11 S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED)
Parameter
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C)b Pulsed Drain Current Continuous Source Current (Diode Conduction)a Maximum Power Dissipation Operating Junction and Storage Temperature Range TC = 25_C TA = 25_C TC = 25_C TC = 100_C
Symbol
VDS VGS ID IDM IS PD TJ, Tstg
Limit
30 "20 50 37
Unit
V
A 100 50 62.5c 7.
