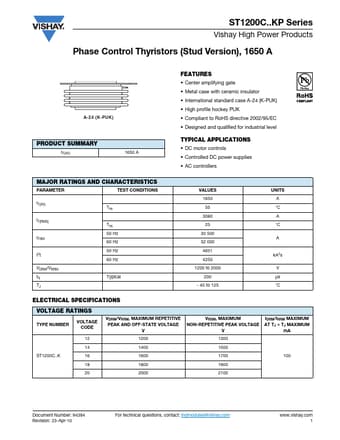

www.DataSheet.co.kr ST1200C..KP Series Vishay High Power Products Phase Control Thyristors (Stud Version), 1650 A

Features

* Center amplifying gate
* Metal case with ceramic insulator
* International standard case A-24 (K-PUK)
* High profile hockey PUK A-24 (K-PUK)
* Compliant to RoHS directive 2002/95/EC
* Designed and qualified for industrial level PRODUCT SUMMARY IT(A

Applications

* DC motor controls
* Controlled DC power supplies
* AC controllers MAJOR RATINGS AND CHARACTERISTICS PARAMETER IT(AV) TEST CONDITIONS VALUES 1650 Ths 55 3080 IT(RMS) Ths 50 Hz ITSM 60 Hz 50 Hz 60 Hz VDRM/VRRM tq TJ Typical 25 30 500 A 32 000 4651 4250 1200 to 2000 200 - 40
