SS3H10, SS3H9 - High Voltage Surface-Mount Schottky Rectifier

Vishay Siliconix

📥 Download Datasheet

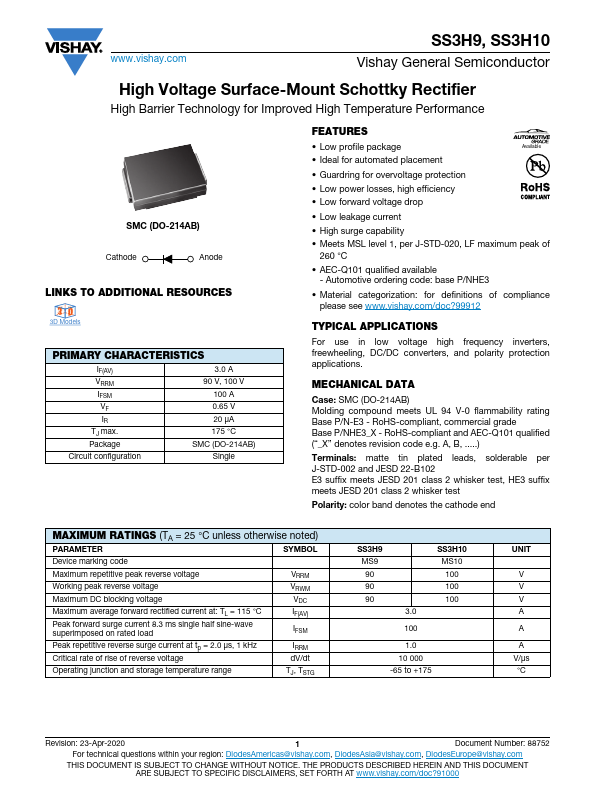

SS3H10 Datasheet Preview — This datasheet PDF includes multiple part numbers: SS3H10, SS3H9. Please refer to the document for exact specifications by model.

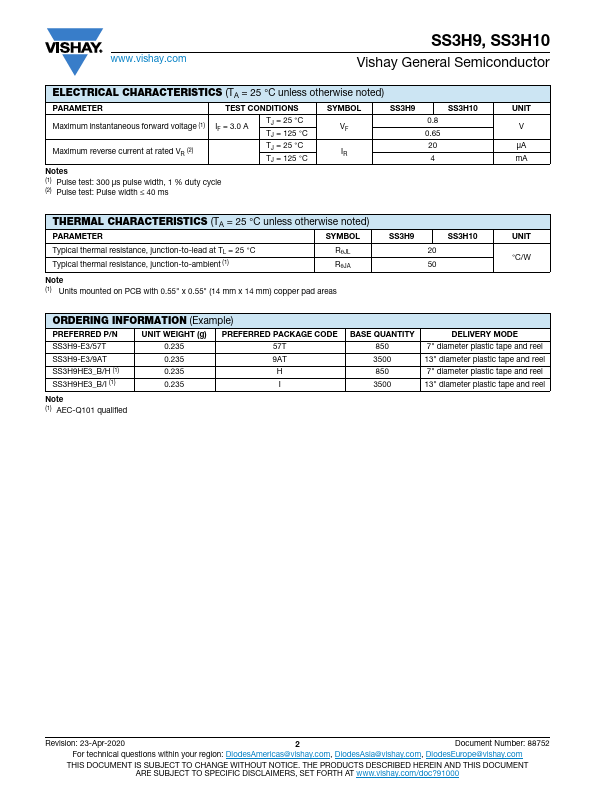

datasheet Preview Page 2

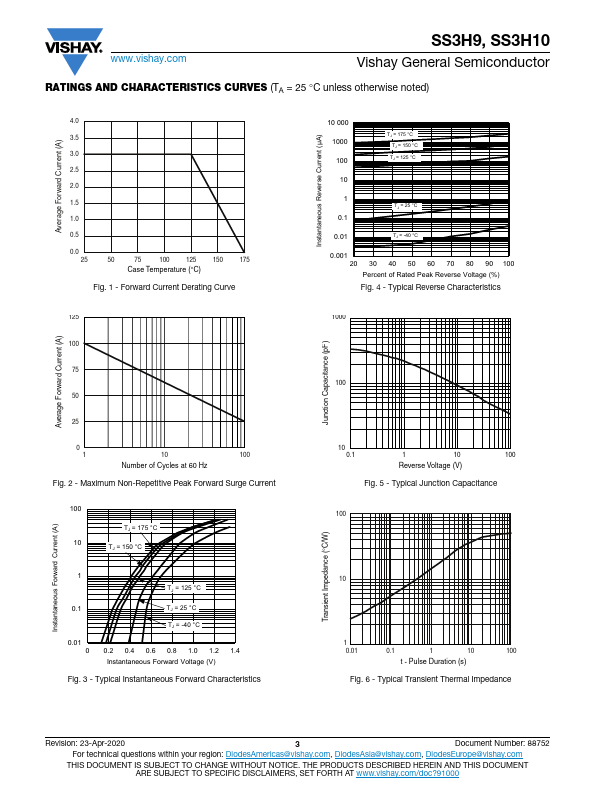

datasheet Preview Page 3

Datasheet Details

Part number	SS3H10, SS3H9
Manufacturer	Vishay Siliconix
File Size	91.80 KB
Description	High Voltage Surface-Mount Schottky Rectifier
Datasheet	SS3H9_VishaySiliconix.pdf
Note	This datasheet PDF includes multiple part numbers: SS3H10, SS3H9. Please refer to the document for exact specifications by model.

SS3H10 Product details

Features

Low profile package Available.
Ideal for automated placement.
Guardring for overvoltage protection.
Low power losses, high efficiency.
Low forward voltage drop.
Low leakage current.
High surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3.
Material categorization: for definitions of compliance please.
