SS2H10, SS2H9 - High-Voltage Surface Mount Schottky Rectifier

Vishay Siliconix

The SS2H10 by Vishay Siliconix is a High-Voltage Surface Mount Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

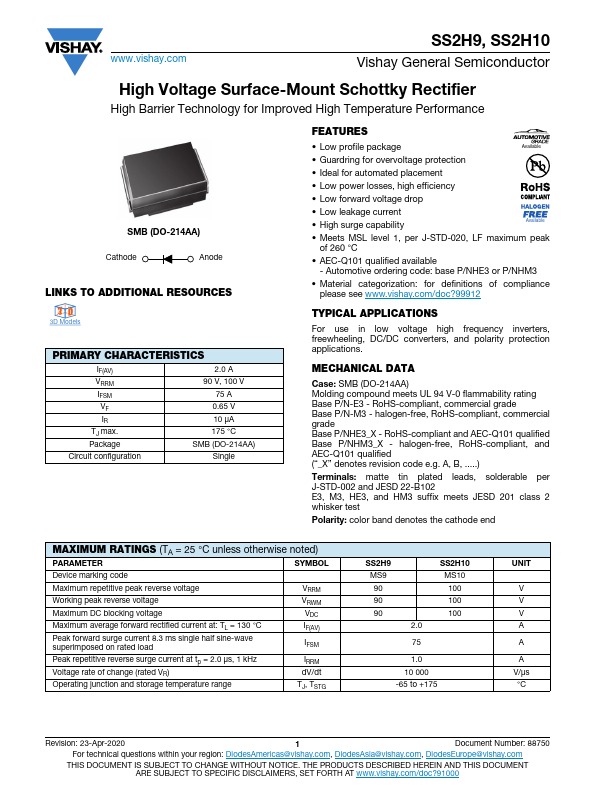

SS2H10 High-Voltage Surface Mount Schottky Rectifier by Vishay Siliconix - Datasheet Preview — Official preview page of the SS2H10 High-Voltage Surface Mount Schottky Rectifier datasheet (Vishay Siliconix).

Datasheet Details

Part number	SS2H10, SS2H9
Manufacturer	Vishay Siliconix
File Size	92.71 KB
Description	High-Voltage Surface Mount Schottky Rectifier
Datasheet	SS2H9_VishaySiliconix.pdf
Note	This datasheet PDF includes multiple part numbers: SS2H10, SS2H9. Please refer to the document for exact specifications by model.

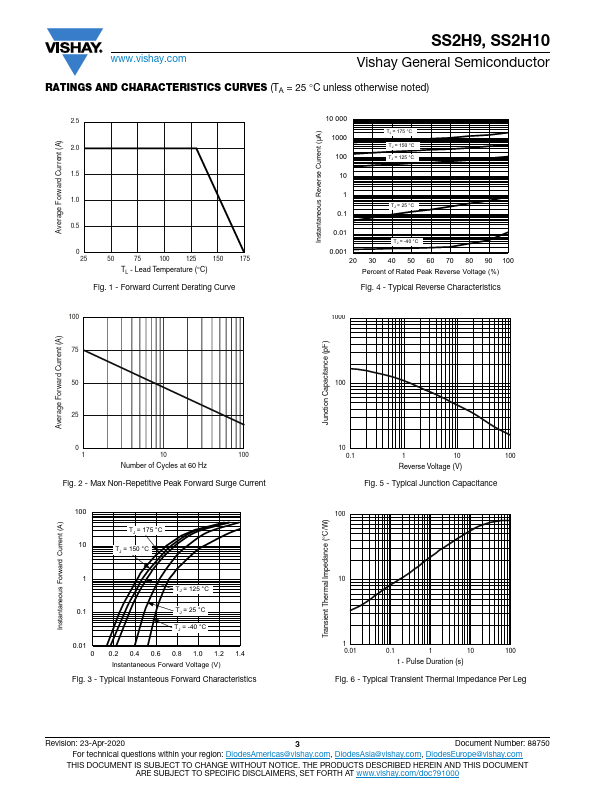

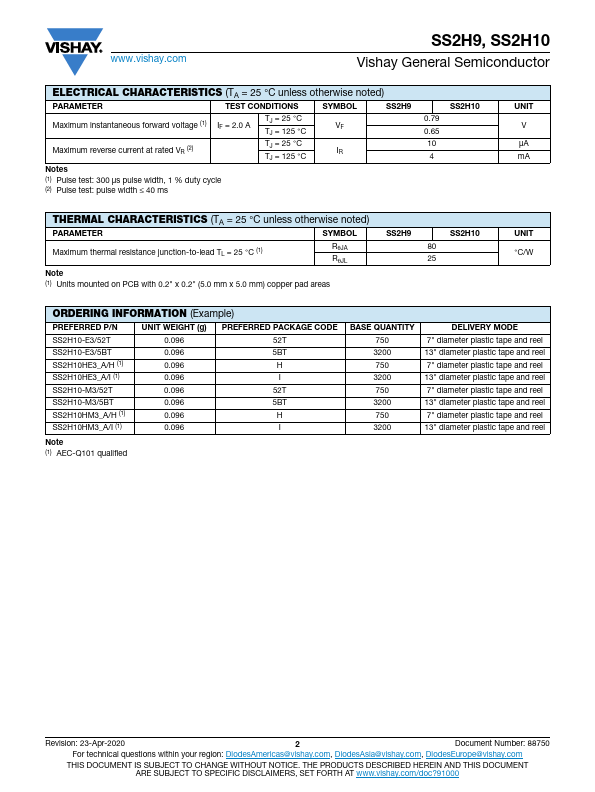

Additional preview pages of the SS2H10 datasheet.

SS2H10 Product details

Features

Low profile package Available.
Guardring for overvoltage protection.
Ideal for automated placement.
Low power losses, high efficiency.
Low forward voltage drop.
Low leakage current.
High surge capability Available.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3.
Material categorization: for definitions o.
