SBLB10L25 Low VF Schottky Barrier Rectifier

SBLB10L25 Description

www.vishay.com SBL10L25, SBLF10L25, SBLB10L25 Vishay General Semiconductor Low VF Schottky Barrier Rectifier TO-220AC ITO-220AC SBL10L25 PIN 1 PI.

SBLB10L25 Features

* Guardring for overvoltage protection
* Low power loss, high efficiency
* Very low forward voltage drop
* High forward surge capability
* High frequency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)

SBLB10L25 Applications

* For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters and polarity protection application. MECHANICAL DATA Case: TO-220AC, ITO-220AC, TO-263AB Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commerc

📥 Download Datasheet

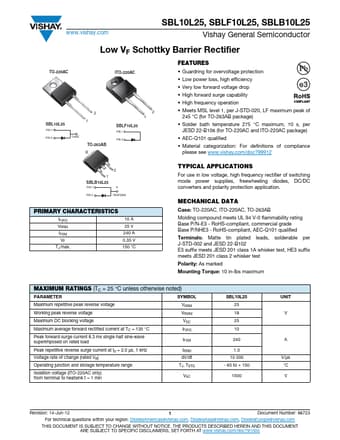

Preview of SBLB10L25 PDF
datasheet Preview Page 2 datasheet Preview Page 3
