VISHAY S503TX/S503TXR/S503TXRW Vishay Semiconductors MOSMIC® for TV-Tuner Prestage with 5 V Supply Voltage 2 1 SOT-143 Comments MOSMIC - MOS Monoli.

📥 Download Datasheet

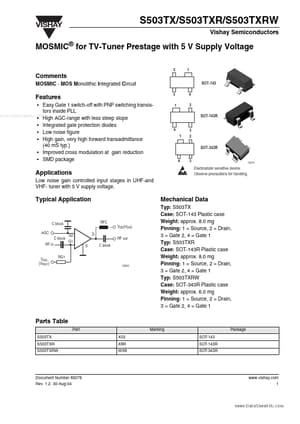

S503TX Datasheet Preview — This datasheet PDF includes multiple part numbers: S503TX, S503TXRW. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: S503TX, S503TXRW
Manufacturer: Vishay ↗ Siliconix
File Size: 173.69 KB
Datasheet: S503TXRW_VishaySiliconix.pdf
Description: MOSMIC
Note: This datasheet PDF includes multiple part numbers: S503TX, S503TXRW.
Please refer to the document for exact specifications by model.

Features

* Easy Gate 1 switch-off with PNP switching transistors inside PLL www. DataSheet4U. com
* High AGC-range with less steep slope
* Integrated gate protection diodes
* Low noise figure
* High gain, very high forward transadmittance (40 mS typ. )
* Improved

Applications

* Low noise gain controlled input stages in UHF-and VHF- tuner with 5 V supply voltage. Electrostatic sensitive device. Observe precautions for handling. Typical Application Mechanical Data Typ: S503TX Case: SOT-143 Plastic case Weight: approx. 8.0 mg Pinning: 1 = Source, 2 = Drain, 3 = Gate 2, 4 =
