MBRF20H60CT - Dual Schottky Barrier Rectifier

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94 V-0.
  • Dual rectifier construction, positive center tap.
  • Metal silicon junction, majority carrier conduction.
  • Low forward voltage drop, low power loss and high efficiency.
  • Guardring for overvoltage protection.
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

Datasheet Details

Part number MBRF20H60CT
Manufacturer Vishay
File Size 85.95 KB
Description Dual Schottky Barrier Rectifier
Datasheet download datasheet MBRF20H60CT Datasheet

📁 Similar Datasheet

  • MBRF20H100CT - Schottky Barrier Diode (BLUE ROCKET ELECTRONICS)
  • MBRF20H100CT - SWITCHMODE Power Rectifier (ON Semiconductor)
  • MBRF20H100CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor)
  • MBRF20H100CTG - SWITCHMODE Power Rectifier (ON Semiconductor)
  • MBRF20H150CT - Dual Schottky Barrier Rectifier (EIC)
  • MBRF20H150CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBRF20H150CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor)
  • MBRF20H150CTG - Power Rectifier (ON Semiconductor)
  • MBRF20H200CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor)
  • MBRF200100 - Silicon Power Schottky Diode (America Semiconductor)
Other Datasheets by Vishay Siliconix
  • MBRF20H100CT - Dual Common Cathode High Voltage Schottky Rectifier
  • MBRF20H150CT - Dual High-Voltage Schottky Rectifiers
  • MBRF20H200CT - Dual Common-Cathode High-Voltage Schottky Rectifier
  • MBRF20H35CT - Dual Schottky Barrier Rectifier
  • MBRF20H90CT - Dual Common Cathode High Voltage Schottky Rectifier
  • MBRF20100CT - Dual High-Voltage Trench MOS Barrier Schottky Rectifier
  • MBRF2090CT - Dual High-Voltage Trench MOS Barrier Schottky Rectifier
  • MBRF25H35CT - (MBRF25H35CT - MBRF25H60CT) Dual Common-Cathode Schottky Rectifier

Full PDF Text Transcription

Click to expand full text

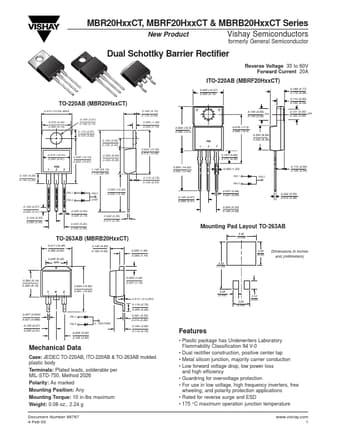

MBR20HxxCT, MBRF20HxxCT & MBRB20HxxCT Series New Product Vishay Semiconductors formerly General Semiconductor Dual Schottky Barrier Rectifier Reverse Voltage 35 to 60V Forward Current 20A ITO-220AB (MBRF20HxxCT) 0.405 (10.27) 0.383 (9.72) 0.188 (4.77) 0.172 (4.36) 0.110 (2.80) 0.100 (2.54) 0.185 (4.70) 0.175 (4.44) 0.154 (3.91) 0.370 (9.40) 0.360 (9.14) 0.148 (3.74) 0.113 (2.87) 0.103 (2.62) 0.145 (3.68) 0.135 (3.43) 0.410 (10.41) 0.390 (9.91) 1 0.160 (4.06) 0.140 (3.56) PIN 2 3 0.603 (15.32) 0.573 (14.55) 0.055 (1.39) 0.045 (1.14) 0.600 (15.5) 0.580 (14.5) PIN 1 2 3 TO-220AB (MBR20HxxCT) 0.415 (10.54) MAX. 0.140 (3.56) DIA. 0.130 (3.30) 0.131 (3.39) DIA. 0.122 (3.08) 0.676 (17.2) 0.646 (16.4) 0.350 (8.89) 0.330 (8.38) 0.635 (16.13) 0.625 (15.87) 0.350 (8.89) 0.330 (8.38) 0.
