LH1500AAB - 1 Form A Solid-State Relay

Vishay Siliconix

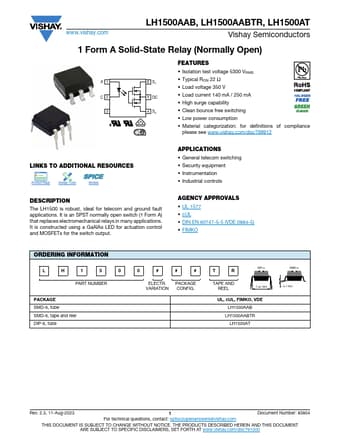

The LH1500AAB by Vishay Siliconix is a 1 Form A Solid-State Relay. Below is the official datasheet preview.

📥 Download Datasheet

LH1500AAB 1 Form A Solid-State Relay by Vishay Siliconix - Datasheet Preview — Official preview page of the **LH1500AAB** 1 Form A Solid-State Relay datasheet (Vishay Siliconix).

Datasheet Details

Part number	LH1500AAB
Manufacturer	Vishay Siliconix
File Size	167.77 KB
Description	1 Form A Solid-State Relay
Datasheet	LH1500AAB_VishaySiliconix.pdf
Additional preview pages of the LH1500AAB datasheet.

LH1500AAB Product details

Description

The LH1500 is robust, ideal for telecom and ground fault applications. General telecom switching Security equipment Instrumentation Industrial controls AGENCY APPROVALS UL 1577 cUL DIN EN 60747-5-5 (VDE 0884-5)

Features

Isolation test voltage 5300 VRMS A1 6 S1.
Typical RON 22 Ω.
Load voltage 350 V C2 5 DC.
Load current 140 mA / 250 mA.
High surge capability 3 4 S2.
Clean bounce free switching.
Low power consumption.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
