IRMS6452 (IRMS6452 / IRMT6452) SIDE VIEW IRMS6452/TOP VIEW

IRMS6452 Description

www.DataSheet4U.com SIDE VIEW IRMS6452/TOP VIEW IRMT6452 4 Mb/s Infrared Data Transceiver Preliminary Dimensions in inches (mm) C .116 L .106 (2.95).
LED Anode LED Cathode Transmit Data Receive Data Shutdown/ Mode Select Positive Supply (Power) GND Ground Features. IrDA, HP-SIR, Local Talk.

IRMS6452 Features

* IrDA, HP-SIR, Local Talk and Sharp ASK
* Ultracompact package:
* H 4.0 mm x D 4.8 mm x L 9.8 mm
* Data rates from 9.6 Kbit/s to 4 Mbit/s
* Supply voltage 2.7 V to 5.25 V
* Power Shutdown mode (

📥 Download Datasheet

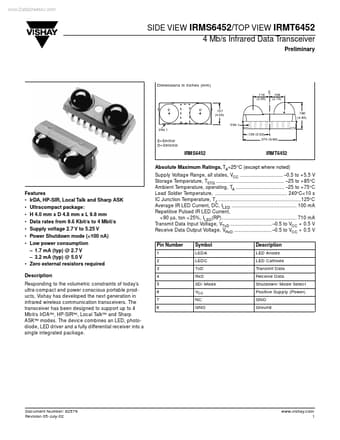

Preview of IRMS6452 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRMS6452
Manufacturer
Vishay ↗ Siliconix
File Size
614.17 KB
Datasheet
IRMS6452_VishaySiliconix.pdf
Description
(IRMS6452 / IRMT6452) SIDE VIEW IRMS6452/TOP VIEW
