GP10A, GP10B, GP10D, GP10G, GP10J, GP10K, GP10M, GP10N, GP10Q, GP10T, GP10V, GP10W, GP10Y
www.vishay.com
Vishay General Semiconductor

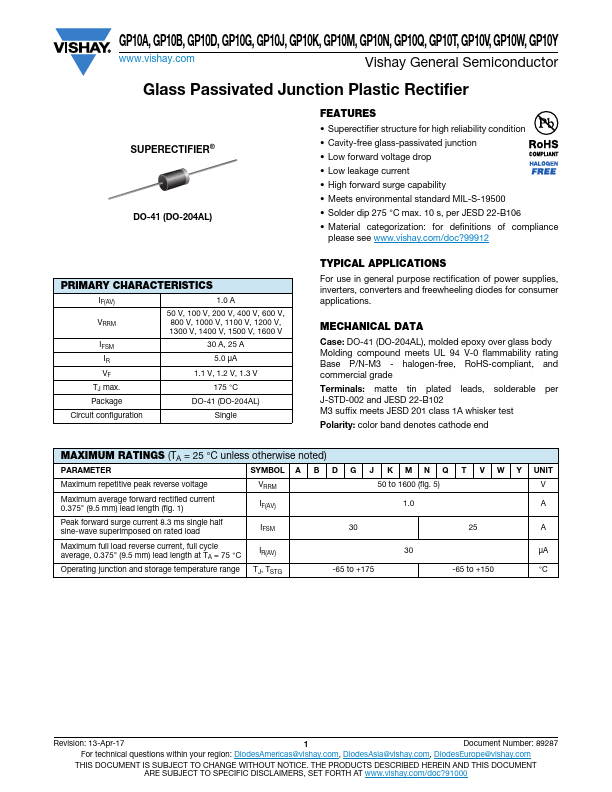

Glass Passivated Junction Plastic Rectifier
SUPERECTIFIER® DO-41 (DO-204AL)
FEATURES • Superectifier structure for high reliability condition • Cavity-free glass-passivated junction • Low forward voltage drop • Low leakage current • High forward surge capability • Meets environmental standard MIL-S-19500 • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
PRIMARY CHARACTERISTICS
IF(AV) VRRM
1.0 A
50 V, 100 V, 200 V, 400 V, 600 V, 800 V, 1000 V, 1100 V, 1200 V, 1300 V, 1400 V, 1500 V, 1600 V
IFSM IR VF
TJ max. Package
30 A, 25 A 5.0 μA
1.1 V, 1.2 V, 1.
GP10N Datasheet
