EKL - Aluminum Capacitors

Vishay Siliconix

The EKL by Vishay Siliconix is a Aluminum Capacitors. Below is the official datasheet preview.

📥 Download Datasheet

EKL Aluminum Capacitors by Vishay Siliconix - Datasheet Preview — Official preview page of the **EKL** Aluminum Capacitors datasheet (Vishay Siliconix).

Datasheet Details

Part number	EKL
Manufacturer	Vishay Siliconix
File Size	139.34 KB
Description	Aluminum Capacitors
Datasheet	EKL_VishaySiliconix.pdf

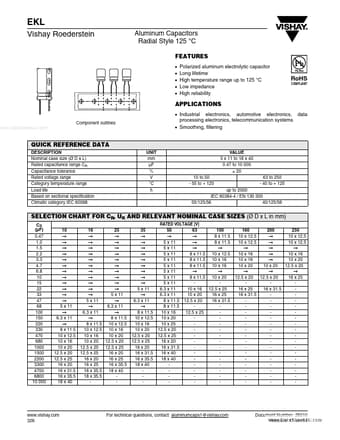

Additional preview pages of the EKL datasheet.

EKL Product details

Description

Nominal case size (Ø D x L) Rated capacitance range CR Capacitance tolerance Rated voltage range Category temperature range Load life Based on sectional specification Climatic category IEC 60068 UNIT mm µF % V °C h VALUE 5 x 11 to 18 x 40 0.47 to 10 000 ± 20 10 to 50 - 55 to + 125 63 to 250 - 40 to + 125 up to 2000 IEC 60384-4 / EN 130 300 55/125/56 40/125/56 SELECTION CHART FOR CR, UR AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm) CR (µF) 0.47 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 15

Features

Polarized aluminum electrolytic capacitor Long lifetime High temperature range up to 125 °C Low impedance High reliability RoHS.
