DTV56B - High Voltage Damper Diodes

Product Overview

Vishay Siliconix

Part number	DTV56B
Manufacturer	Vishay Siliconix
File Size	184.12 KB
Description	High Voltage Damper Diodes
Datasheet	DTV56B Datasheet
Note	This datasheet PDF includes multiple part numbers: DTV56B, DTV56. Please refer to the document for exact specifications by model.

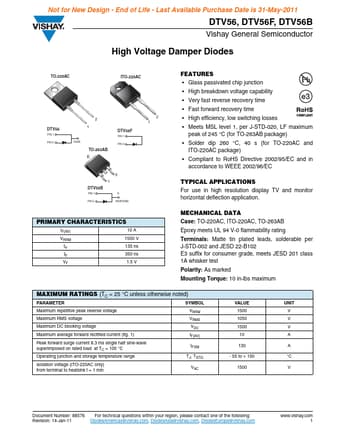

Additional preview pages of the DTV56B datasheet.

Glass passivated chip junction.
High breakdown voltage capability.
Very fast reverse recovery time.
Fast forward recovery time 2 1 2 DTV56 PIN 1 PIN 2.
High efficiency, low switching losses.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
Solder dip 260 °C, 40 s (for TO-220AC and ITO-220AC package).
Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC 1 DTV56F P.
