DG3157 - High-Speed / Low rON / SPDT Analog Switch (2:1 Multiplexer/Demultiplexer Bus Switch)

Product Overview

Vishay Siliconix

📥 Download Datasheet

DG3157 High-Speed / Low rON / SPDT Analog Switch (2:1 Multiplexer/Demultiplexer Bus Switch) by Vishay Siliconix - Datasheet Preview — Datasheet preview – DG3157

Datasheet Details

Part number	DG3157
Manufacturer	Vishay Siliconix
File Size	82.90 KB
Description	High-Speed / Low rON / SPDT Analog Switch (2:1 Multiplexer/Demultiplexer Bus Switch)
Datasheet	DG3157 Datasheet

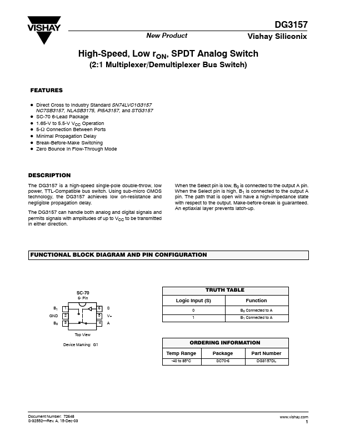

Additional preview pages of the DG3157 datasheet.

Product details

Description

The DG3157 is a high-speed single-pole double-throw, low power, TTL-Compatible bus switch.

Features

D Direct Cross to Industry Standard SN74LVC1G3157 NC7SB3157, NLASB3175, Pl5A3157, and STG3157 D SC-70 6-Lead Package D 1.65-V to 5.5-V VCC Operation D 5-W Connection Between Ports D Minimal Propagation Delay D Break-Before-Make Switching D Zero Bounce In Flow-Through Mode.
