DG302B - CMOS Analog Switches

Vishay Siliconix

📥 Download Datasheet

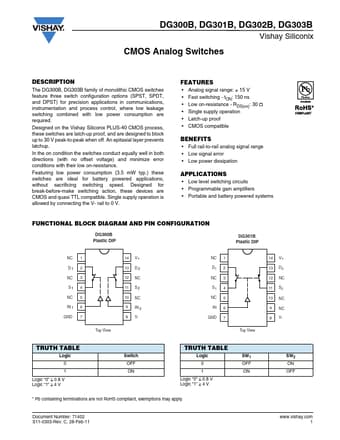

DG302B Datasheet Preview — Preview of DG302B PDF

Datasheet Details

Part number	DG302B
Manufacturer	Vishay Siliconix
File Size	206.02 KB
Description	CMOS Analog Switches
Datasheet	DG302B_VishaySiliconix.pdf

DG302B Product details

Description

The DG300B, DG303B family of monolithic CMOS switches feature three switch configuration options (SPST, SPDT, and DPST) for precision applications in communications, instrumentation and process control, where low leakage switching combined with low power consumption are required.

Features

Analog signal range: ± 15 V.
Fast switching - tON: 150 ns.
Low on-resistance - RDS(on): 30 .
Single supply operation.
Latch-up proof.
CMOS compatible.
