DF15005S - (DF15005S - DF1510S) Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers

Product Overview

Vishay Siliconix

Part number	DF15005S
Manufacturer	Vishay Siliconix
File Size	80.96 KB
Description	(DF15005S - DF1510S) Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
Datasheet	DF15005S Datasheet

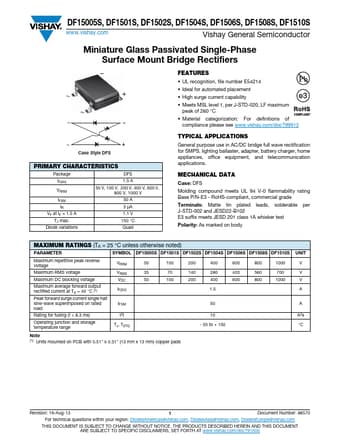

Additional preview pages of the DF15005S datasheet.

UL recognition, file number E54214.
Ideal for automated placement.
High surge current capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
