3KASMC40 - Transient Voltage Suppressors

Product Overview

Vishay Siliconix

📥 Download Datasheet

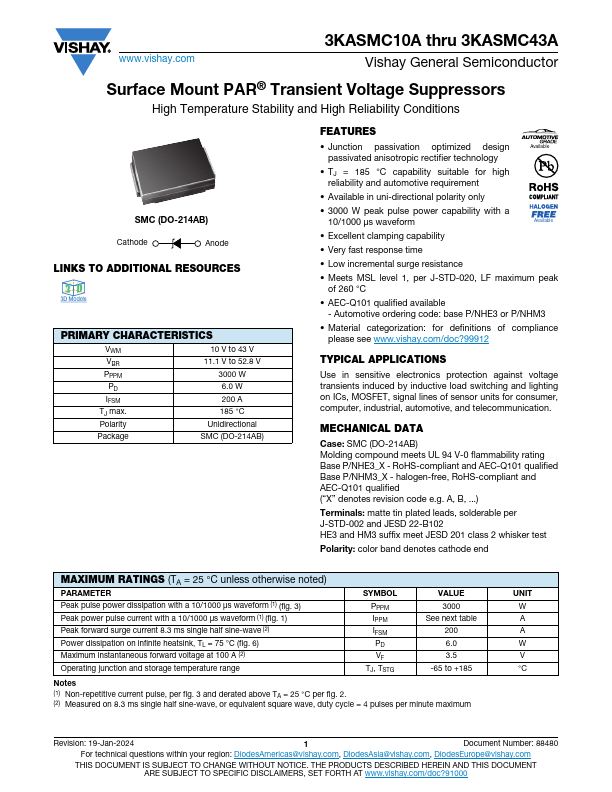

3KASMC40 Transient Voltage Suppressors by Vishay Siliconix - Datasheet Preview — Datasheet preview – 3KASMC40

Datasheet Details

Part number	3KASMC40
Manufacturer	Vishay Siliconix
File Size	100.02 KB
Description	Transient Voltage Suppressors
Datasheet	3KASMC40 Datasheet
Note	This datasheet PDF includes multiple part numbers: 3KASMC40, 3KASMC15A. Please refer to the document for exact specifications by model.

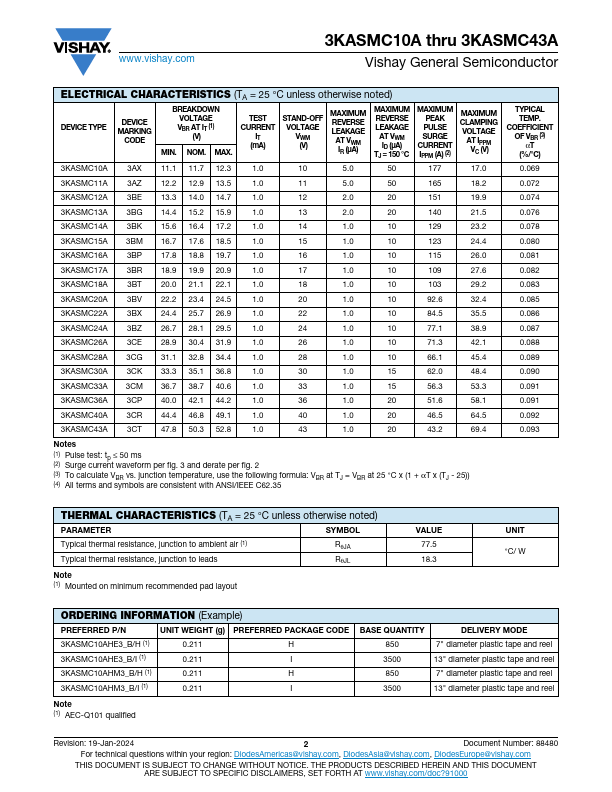

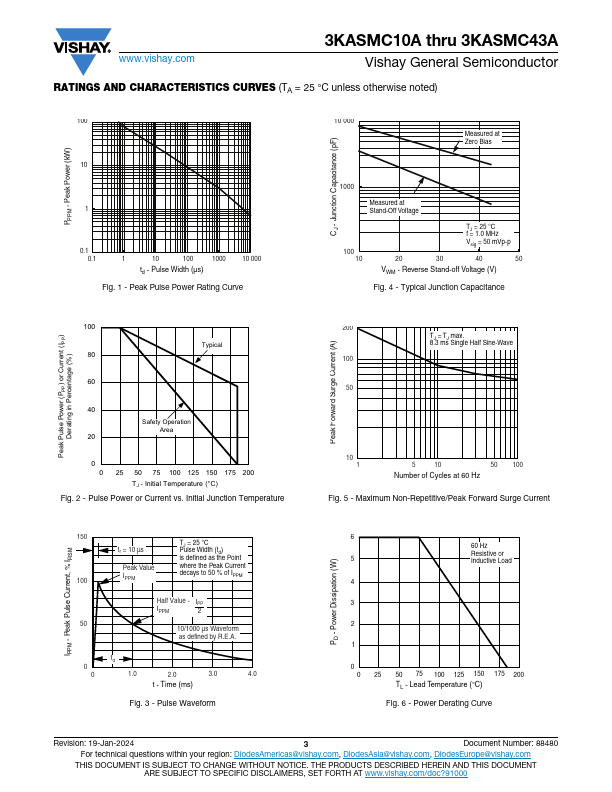

Additional preview pages of the 3KASMC40 datasheet.

Product details

Features

Junction passivation optimized design passivated anisotropic rectifier technology Available.
TJ = 185 °C capability suitable for high reliability and automotive requirement.
Available in uni-directional polarity only.
3000 W peak pulse power capability with a 10/1000 μs waveform Available.
Excellent clamping capability.
Very fast response time.
Low incremental surge resistance.
Meets MSL level 1, per J-STD-020, LF.
