3KASMC24A - Transient Voltage Suppressors

Product Overview

Vishay Siliconix

📥 Download Datasheet

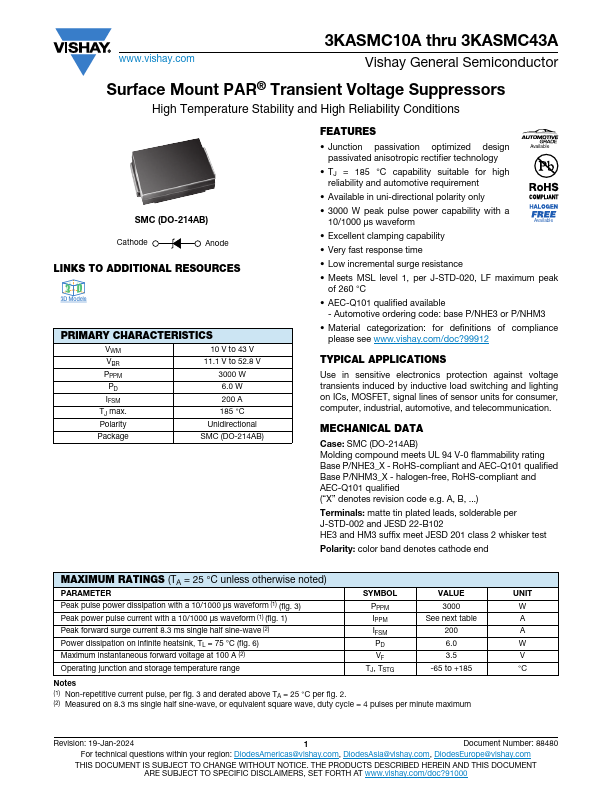

3KASMC24A Transient Voltage Suppressors by Vishay Siliconix - Datasheet Preview — Datasheet preview – 3KASMC24A

Datasheet Details

Part number	3KASMC24A
Manufacturer	Vishay Siliconix
File Size	100.02 KB
Description	Transient Voltage Suppressors
Datasheet	3KASMC24A Datasheet
Note	This datasheet PDF includes multiple part numbers: 3KASMC24A, 3KASMC15A. Please refer to the document for exact specifications by model.

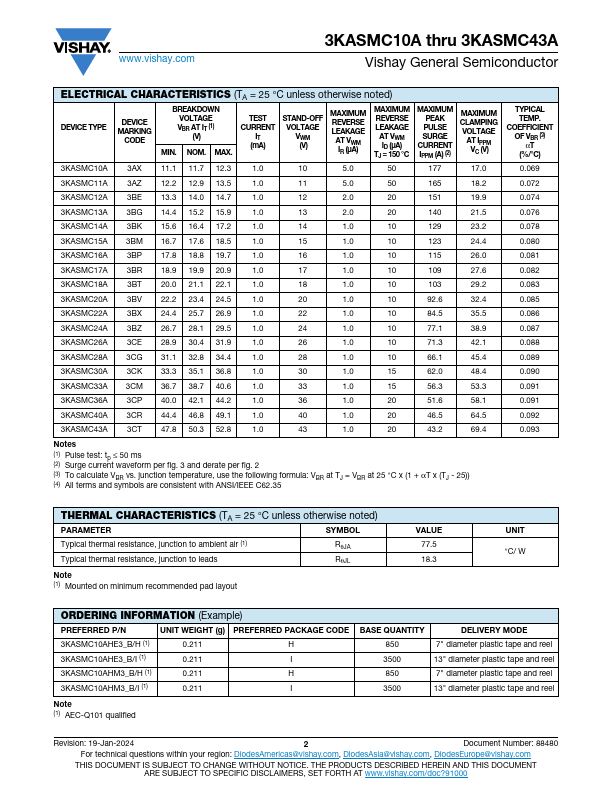

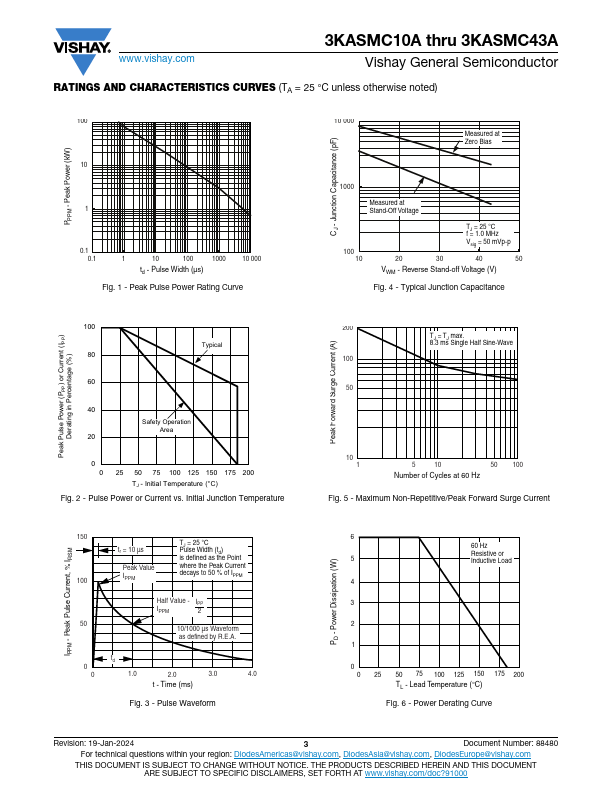

Additional preview pages of the 3KASMC24A datasheet.

Product details

Features

Junction passivation optimized design passivated anisotropic rectifier technology Available.
TJ = 185 °C capability suitable for high reliability and automotive requirement.
Available in uni-directional polarity only.
3000 W peak pulse power capability with a 10/1000 μs waveform Available.
Excellent clamping capability.
Very fast response time.
Low incremental surge resistance.
Meets MSL level 1, per J-STD-020, LF.
