2N5486 - N-Channel JFETs

Name: 2N5486
SKU: 2N5486-72274

Vishay Siliconix

📥 Download Datasheet

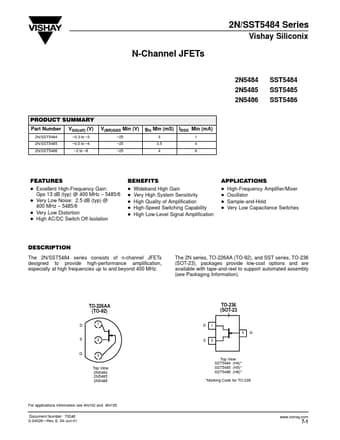

2N5486 Datasheet Preview — Preview of 2N5486 PDF

Datasheet Details

Part number	2N5486
Manufacturer	Vishay Siliconix
File Size	55.77 KB
Description	N-Channel JFETs
Datasheet	2N5486_VishaySiliconix.pdf

2N5486 Product details

Description

The 2N/SST5484 series consists of n-channel JFETs designed to provide high-performance amplification, especially at high frequencies up to and beyond 400 MHz. SST5485 (H5) SST54

Features

D Excellent High-Frequency Gain: Gps 13 dB (typ) @ 400 MHz.
5485/6 D Very Low Noise: 2.5 dB (typ) @ 400 MHz.
5485/6 D Very Low Distortion D High AC/DC Switch Off-Isolation.
