TIP3220 Infrared Touch Panels

TIP3220 Description

TIP Vishay Dale Infrared Touch Panels With Controller .
Each Vishay Dale® touch panel has infrared LED emitters and detectors along the X. and Y. axis, forming a grid of infrared light beams.

TIP3220 Features

* Fast response time
* Flexible operating modes
* User transparent
* Rugged construction
* Sealed for environmental resistance
* Immune to high or changing ambient light
* RS-232C interface
* Pre-assembled - no assembly or disassembly r

TIP3220 Applications

* including medical instrumentation, machine or process controls, point of sale devices, public information displays, banking and military. Vishay Dale® TIP touch panels have a unique patented scanning l9ogic system that makes them virtually immune to most lighting environments. www. DataSheet4U. com Op

📥 Download Datasheet

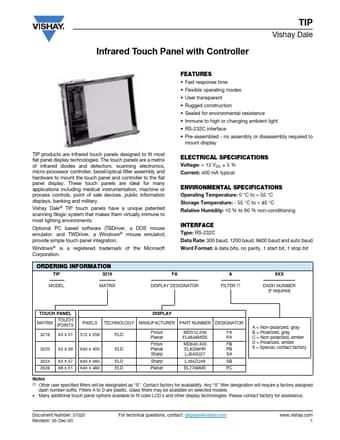

Preview of TIP3220 PDF
datasheet Preview Page 2 datasheet Preview Page 3
