TDSR1050 - High Intensity Red Low Current Seven Segment Display

Download the TDSR1050 datasheet PDF. This datasheet also covers the TDSR0750 variant, as both devices belong to the same high intensity red low current seven segment display family and are provided as variant models within a single manufacturer datasheet.

Description

This series defines a new standard for Low Current Displays.

It is a single digit 7-Segment LED display utilizing AllnGaP technology in color red.

The supreme light intensity allows applications under direct sunlight or "black front" designs by using tinted filter glass in front of the display.

Features

  • 1500 µcd typical at 1.0 mA Very low power consumption Wide viewing angle Grey package surface Light intensity categorized at IF= 1.0mA Parts Table Part TDSR0750 TDSR0760 TDSR1050 TDSR1060 TDSR1350 TDSR1360 Color, Luminous Intensity High intensity low current red High intensity low current red High intensity low current red High intensity low current red High intensity low current red High intensity low current red Circuitry Common anode Common c.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TDSR0750_VishayIntertechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TDSR1050
Manufacturer Vishay
File Size 198.05 KB
Description High Intensity Red Low Current Seven Segment Display
Datasheet download datasheet TDSR1050 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TDSR115 7 mm Seven Segment Display Vishay Telefunken
TDSR116 7 mm Seven Segment Display Vishay Telefunken
TDSR315 10 mm Seven Segment Display Vishay Telefunken
TDSR316 10 mm Seven Segment Display Vishay Telefunken
TDSR515 13 mm Seven Segment Display Vishay Telefunken

Other Datasheets by Vishay

Part Number Description
TDSR1060 High Intensity Red Low Current Seven Segment Display
TDSR1350 High Intensity Red Low Current Seven Segment Display
TDSR1360 High Intensity Red Low Current Seven Segment Display
TDSR0750 High Intensity Red Low Current Seven Segment Display
TDSR0760 High Intensity Red Low Current Seven Segment Display

Full PDF Text Transcription

Click to expand full text

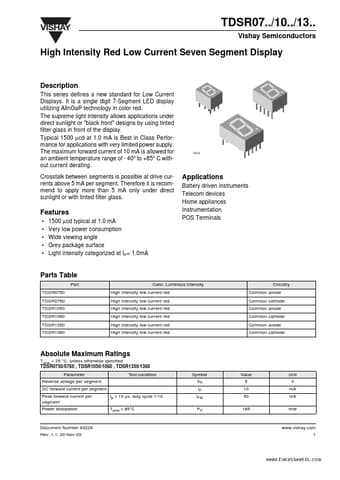

VISHAY TDSR07../10../13.. www.DataSheet4U.com Vishay Semiconductors High Intensity Red Low Current Seven Segment Display Description This series defines a new standard for Low Current Displays. It is a single digit 7-Segment LED display utilizing AllnGaP technology in color red. The supreme light intensity allows applications under direct sunlight or "black front" designs by using tinted filter glass in front of the display. Typical 1500 µcd at 1.0 mA is Best in Class Performance for applications with very limited power supply. The maximum forward current of 10 mA is allowed for an ambient temperature range of - 40° to +85° C without current derating. Crosstalk between segments is possible at drive currents above 5 mA per segment.
