CRCW1218 - Standard Thick Film Chip Resistors

Product Overview

Vishay Intertechnology

Datasheet Details

Part number	CRCW1218
Manufacturer	Vishay Intertechnology
File Size	143.61 KB
Description	Standard Thick Film Chip Resistors
Datasheet	CRCW1218 Datasheet
Note	This datasheet PDF includes multiple part numbers: CRCW1218, CRCW12061211FB02. Please refer to the document for exact specifications by model.

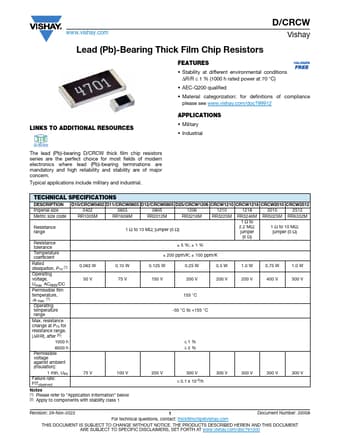

Additional preview pages of the CRCW1218 datasheet.

Product details

Description

D10/CRCW0402 D11/CRCW0603 D12/CRCW0805 D25/CRCW1206 CRCW1210 CRCW1218 CRCW2010 CRCW2512 Imperial size 0402 0603 0805 1206 1210 1218 2010 2512 Metric size code RR1005M RR1608M RR2012M RR3216M RR3225M RR3246M RR5025M RR6332M Resistance range 1 Ω to 10 MΩ; jumper (0 Ω) 1 Ω to 2.2 MΩ; jumper (0 Ω) 1 Ω to 10 MΩ; jumper (0 Ω) Resistance tolerance ± 5 %; ± 1 % Temperature coefficient ± 200 ppm/K; ± 100 ppm/K Rated dissipation, P70 (1) Operating voltage, Umax.ACRMS/DC Permissible

Features

Stability at different environmental conditions ΔR/R ≤ 1 % (1000 h rated power at 70 °C).
AEC-Q200 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
