CDR31BP221B - Multilayer Ceramic Chip Capacitor

Download the CDR31BP221B datasheet PDF (CDR31BP220BFWPAT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for multilayer ceramic chip capacitor.

Features

  • Military qualified products.
  • High reliability tested per MIL-PRF-55681.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDR31BP220BFWPAT_VishayIntertechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CDR31BP221B
Manufacturer Vishay
File Size 136.09 KB
Description Multilayer Ceramic Chip Capacitor
Datasheet download datasheet CDR31BP221B Datasheet

📁 Similar Datasheet

Other Datasheets by Vishay Intertechnology

Full PDF Text Transcription

Click to expand full text

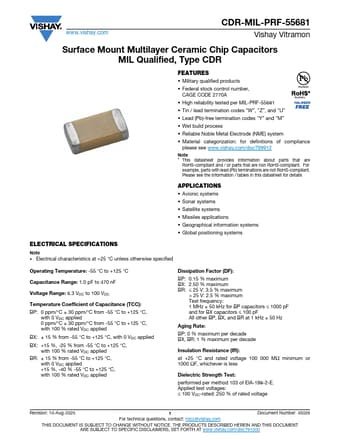

www.DataSheet4U.com MIL-PRF-55681 Vishay Vitramon Multilayer Ceramic Chip Capacitors, Qualified, Type CDR FEATURES • Military qualified products. • High reliability tested per MIL-PRF-55681. GENERAL SPECIFICATIONS NOTE: Electrical characteristics @ + 25°C unless otherwise specified. Capacitance Range: 1.0pF to 0.47µF. Voltage - Temperature Limits: BP: 0 ± 30PPM/°C from - 55°C to + 125°C with 0 Vdc applied. BX: ± 15% from - 55°C to + 125°C with 0 Vdc applied + 15%, - 25% from - 55°C to + 125°C with rated Vdc applied. Dissipation Factor (DF): BP: 0.15% maximum; BX: 2.5% maximum. Insulation Resistance (IR): @ + 25°C and rated voltage 100,000 Megohms minimum or 1000 ohm-farads, whichever is less. @ + 125°C and rated voltage 10,000 Megohms minimum or 100 ohm-farads, whichever is less.
