FL5-xxxx - EN Compliant / Autoranging Switcher

Vicor Corporation

📥 Download Datasheet

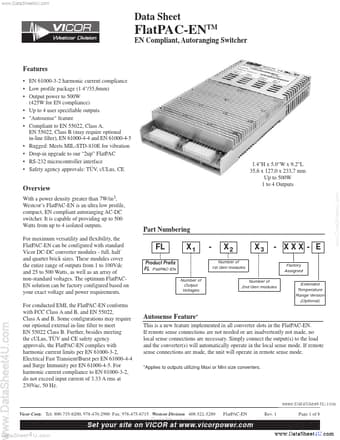

FL5-xxxx Datasheet Preview — Preview of FL5-xxxx PDF

Datasheet Details

Part number	FL5-xxxx
Manufacturer	Vicor Corporation
File Size	353.88 KB
Description	EN Compliant / Autoranging Switcher
Datasheet	FL5-xxxx_VicorCorporation.pdf

FL5-xxxx Product details

Description

SIGNAL GROUND N/C AC POWER OK TRANSMIT 4 RECEIVE ENABLE/DISABLE ENABLE/DISABLE ENABLE/DISABLE ENABLE/DISABLE GENERAL SHUTDOWN N/C +5V @ 300mA CBJ1 E/D INTERFACE CONNECTOR 3 2 MATING CONNECTOR: HOUSING: MOLEX (50-57-9412) SOCKET CRIMP 24-30 AWG: MOLEX (16-02-0097) CRIMP TOOL: MOLEX (11-01-0209) NOTES: UNLESS OTHERWISE SPECIFIED 1 REFERENCE MB CB DESIGNATION MOTHER BOARD CONTROL BOARD 2 3 CONNECTOR PART NUMBERS SPECIFIED ARE MOLEX OR EQUIVALENT A COMPLETE SET OF MATING CONNECTORS CAN BE PURCH

Features

EN 61000-3-2 harmonic current compliance.
Low profile package (1.4"/35,6mm).
Output power to 500W (425W for EN compliance).
Up to 4 user specifiable outputs.
"Autosense" feature.
Compliant to EN 55022, Class A, EN 55022, Class B (may require optional in-line filter), EN 61000-4-4 and EN 61000-4-5.
Rugged: Meets MIL-STD-810E for vibration.
Drop-in upgrade to our “2up” FlatPAC.
RS-232 microcontroller interface.
