PE255 - Piezoelectric Pressure Transducer

Download the PE255 datasheet PDF. This datasheet also covers the PE255_Vibro variant, as both devices belong to the same piezoelectric pressure transducer family and are provided as variant models within a single manufacturer datasheet.

Description

The dynamic pressure transducer PE 255 is a low mass transducer with extended low and high frequency performances.

The integral electronics eliminates the need for a charge converter and allows the use of up to several hundred meters of low-cost cable.

Noise floor is an exceptional 20 µV broadband.

Features

  • 2 wire technique Hermetically sealed Frequency response: 0.3 Hz to 20,000 Hz Sensitivity 17 mV/bar (1.17 mV/psi) Temperature range: -253°C to +125°C : 6 g (US 5/16'') 18 g (Metric M10x1).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PE255_Vibro-Meter.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PE255
Manufacturer Vibro-Meter
File Size 154.66 KB
Description Piezoelectric Pressure Transducer
Datasheet download datasheet PE255 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PE250GB40 THYRISTOR SanRex
PE250GB80 THYRISTOR SanRex
PE250HB120 THYRISTOR SanRex
PE250HB160 THYRISTOR SanRex
PE2512 CURRENT SENSOR YAGEO

Other Datasheets by Vibro-Meter

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

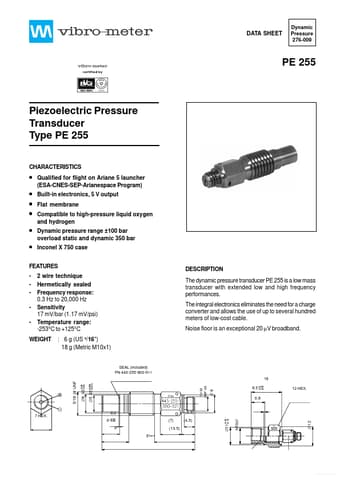

DATA SHEET Dynamic Pressure 276-009 PE 255 certified by Piezoelectric Pressure Transducer Type PE 255 CHARACTERISTICS • Qualified for flight on Ariane 5 launcher (ESA-CNES-SEP-Arianespace Program) • Built-in electronics, 5 V output • Flat membrane • Compatible to high-pressure liquid oxygen and hydrogen • Dynamic pressure range ±100 bar overload static and dynamic 350 bar • Inconel X 750 case FEATURES 2 wire technique Hermetically sealed Frequency response: 0.3 Hz to 20,000 Hz Sensitivity 17 mV/bar (1.17 mV/psi) Temperature range: -253°C to +125°C : 6 g (US 5/16'') 18 g (Metric M10x1) DESCRIPTION The dynamic pressure transducer PE 255 is a low mass transducer with extended low and high frequency performances.
