Datasheet Details
Part number:
LCR0603, LCR0402
Manufacturer:
Venkel
File Size:
600.92 KB
Description:
Chip resistors.
Note:
This datasheet PDF includes multiple part numbers: LCR0603, LCR0402.
Please refer to the document for exact specifications by model.

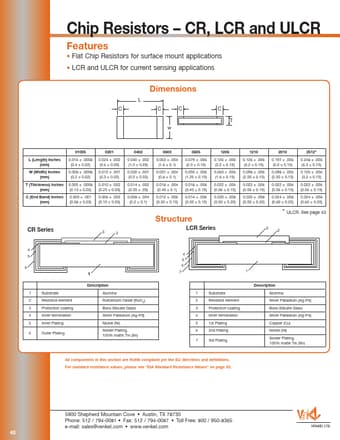

LCR0603, LCR0402, Chip Resistors
LCR0603 Features
* Flat Chip Resistors for surface mount applications
* LCR and ULCR for current sensing applications Dimensions L C CC w C T L (Length) Inches (mm) W (Width) Inches (mm) T (Thickness) Inches (mm) C (End Band) Inches (mm) 01005 0.016 ± .0008 (0.4 ± 0.02) 0.008 ± .0008 (0.2 ± 0.02)
