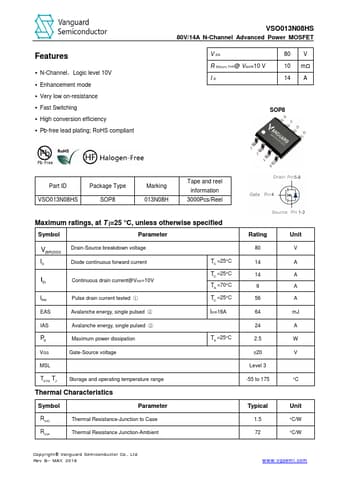

VSO013N08HS - N-Channel Advanced Power MOSFET

Features

  • N-Channel，Logic level 10V.
  • Enhancement mode.
  • Very low on-resistance.
  • Fast Switching.
  • High conversion efficiency.
  • Pb-free lead plating; RoHS compliant VSO013N08HS 80V/14A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V ID 80 V 10 mΩ 14 A SOP8 Part ID VSO013N08HS Package Type SOP8 Marking 013N08H Tape and reel information 3000Pcs/Reel Maximum ratings, at T j=25 °C, unless otherwise specified Symbol Parameter V(BR)DSS IS Drain-Source breakdown.

📥 Download Datasheet

Datasheet Details

Part number VSO013N08HS
Manufacturer Vanguard Semiconductor
File Size 407.96 KB
Description N-Channel Advanced Power MOSFET
Datasheet download datasheet VSO013N08HS Datasheet
