VSO011P03MD - Dual P-Channel Advanced Power MOSFET

VSO011P03MD Description

VSO011P03MD -30V/-13A Dual P-Channel Advanced Power MOSFET .

VSO011P03MD Features

* Dual P-Channel,-5V Logic Level Control
* Enhancement mode
* Very low on-resistance RDS(on) @ VGS=-4.5 V
* Fast Switching
* High Effective
* Pb-free lead plating; RoHS compliant; Hg-Free V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5 V ID -30 11 15 -13 SOP8 V mΩ mΩ

📥 Download Datasheet

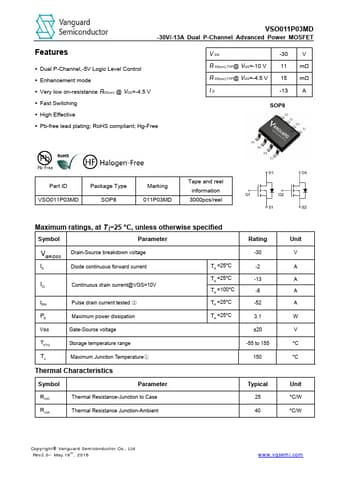

Preview of VSO011P03MD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSO011P03MD
Manufacturer
Vanguard Semiconductor
File Size
369.59 KB
Datasheet
VSO011P03MD-VanguardSemiconductor.pdf
Description
Dual P-Channel Advanced Power MOSFET
