VSI013N10MS - N-Channel Advanced Power MOSFET

Product Overview

Vanguard Semiconductor

📥 Download Datasheet

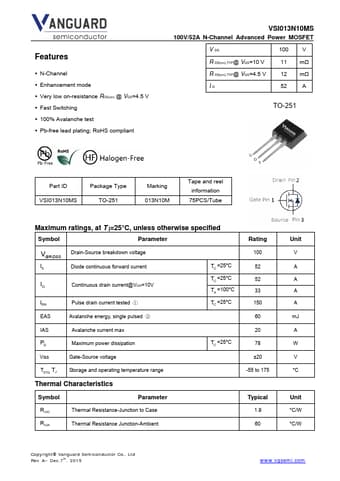

VSI013N10MS N-Channel Advanced Power MOSFET by Vanguard Semiconductor - Datasheet Preview — Datasheet preview – VSI013N10MS

Datasheet Details

Part number	VSI013N10MS
Manufacturer	Vanguard Semiconductor
File Size	332.61 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSI013N10MS Datasheet
Additional preview pages of the VSI013N10MS datasheet.

Product details

Features

N-Channel.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
Fast Switching.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VSI013N10MS 100V/52A N-Channel Advanced Power MOSFET V DS 100 V R @DS(on),TYP VGS=10 V 11 mΩ R @DS(on),TYP VGS=4.5 V 12 mΩ I D 52 A TO-251 Part ID VSI013N10MS Package Type TO-251 Marking 013N10M Tape and reel information 75PCS/Tube Maximum ratings, at T j=25°C, unless otherwise specified Symbol Parameter.
