VSB011N06MS - N-Channel Advanced Power MOSFET

Name: VSB011N06MS
SKU: VSB011N06MS-1281916

Vanguard Semiconductor

The VSB011N06MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSB011N06MS
Manufacturer	Vanguard Semiconductor
File Size	516.10 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSB011N06MS-VanguardSemiconductor.pdf

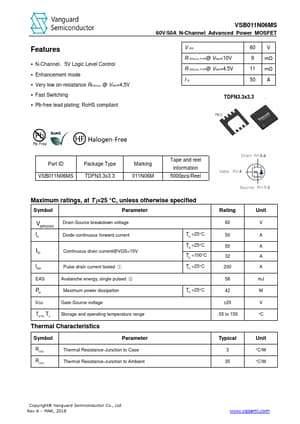

Additional preview pages of the VSB011N06MS datasheet.

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5V.
Fast Switching.
Pb-free lead plating; RoHS compliant VSB011N06MS 60V/50A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10V R @DS(on),TYP VGS=4.5V ID 60 V 9 mΩ 11 mΩ 50 A TDFN3.3x3.3 . Part ID VSB011N06MS Package Type TDFN3.3x3.3 Marking 011N06M Tape and reel information 5000pcs/Reel Maximum ratings, at T j=25 °C, unless otherwise specified Symbol Parameter.
