VS6614GS N-Channel Advanced Power MOSFET

VS6614GS Description

.

VS6614GS Features

* Enhancement mode
* Low on-resistance RDS(on) @ VGS=4.5 V
* VitoMOS® Ⅱ Technology
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VS6614GS 60V/13A N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V R @ DS(on),TYP VGS=4.5 V ID 60 V 10.5 mΩ 17 mΩ 13

📥 Download Datasheet

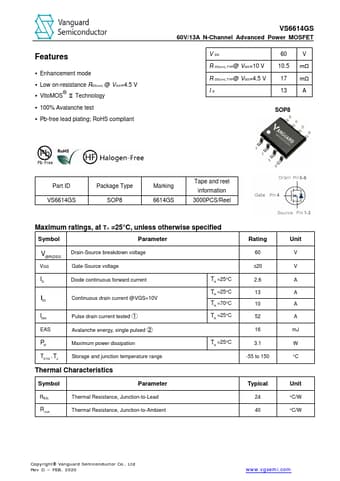

Preview of VS6614GS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS6614GS
Manufacturer
Vanguard Semiconductor
File Size
555.38 KB
Datasheet
VS6614GS-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
