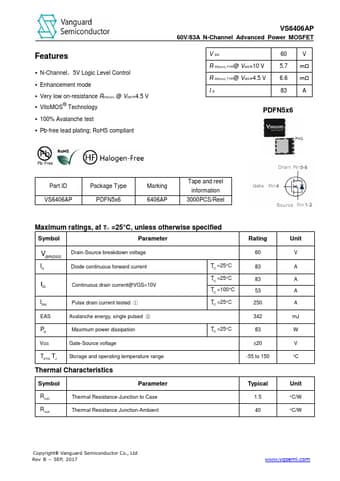

VS6406AP - N-Channel Advanced Power MOSFET

Features

  • N-Channel，5V Logic Level Control.
  • Enhancement mode.
  • Very low on-resistance RDS(on) @ VGS=4.5 V.
  • VitoMOS® Technology.
  • 100% Avalanche test.
  • Pb-free lead plating; RoHS compliant VS6406AP 60V/83A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 60 V 5.7 mΩ 6.6 mΩ 83 A PDFN5x6 Part ID VS6406AP Package Type PDFN5x6 Marking 6406AP Tape and reel information 3000PCS/Reel Maximum ratings, at TC =25°C, unless otherwise specified.

📥 Download Datasheet

Datasheet Details

Part number VS6406AP
Manufacturer Vanguard Semiconductor
File Size 608.10 KB
Description N-Channel Advanced Power MOSFET
Datasheet download datasheet VS6406AP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VS6451 Ultra small reflowable CIF+ camera module ST Microelectronics
VS6 AC-DC / Configurable Emerson
VS6502 VGA Color CMOS Image Sensor Module ST Microelectronics
VS6524 VGA Mobile Camera Module ST Microelectronics
VS6552 VGA Color CMOS Image Sensor Module ST Microelectronics

Other Datasheets by Vanguard Semiconductor

Part Number Description
VS6406AS N-Channel Advanced Power MOSFET
VS6406AT N-Channel Advanced Power MOSFET
VS6404AP N-Channel Advanced Power MOSFET
VS6404BS N-Channel Advanced Power MOSFET
VS6408AS N-Channel Advanced Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features  N-Channel，5V Logic Level Control  Enhancement mode  Very low on-resistance RDS(on) @ VGS=4.5 V  VitoMOS® Technology  100% Avalanche test  Pb-free lead plating; RoHS compliant VS6406AP 60V/83A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 60 V 5.7 mΩ 6.
