VS3540AC - P-Channel Advanced Power MOSFET

VS3540AC Description

.

VS3540AC Features

* P-Channel
* Enhancement mode
* Fast Switching
* Pb-free lead plating; RoHS compliant VS3540AC -30V/-3.4A P-Channel Advanced Power MOSFET V DS R DS(on),max @VGS=-10V R DS(on),max @VGS=-4.5V ID -30 V 52 mΩ 62 mΩ -3.4 A SOT23 Part ID VS3540AC Package Type SOT23 Marking VS01 Tap

📥 Download Datasheet

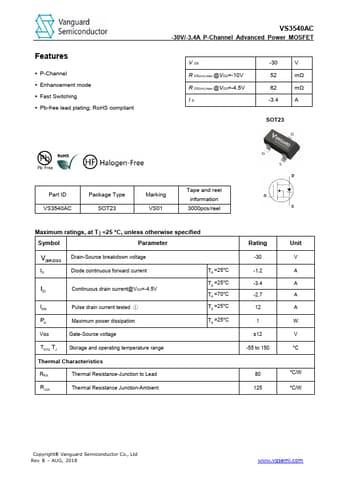

Preview of VS3540AC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3540AC
Manufacturer
Vanguard Semiconductor
File Size
764.49 KB
Datasheet
VS3540AC-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
