VS3522AA - P-Channel Advanced Power MOSFET

VS3522AA Description

.

VS3522AA Features

* P-Channel，-5V Logic Level Control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=-4.5 V
* Fast Switching
* Pb-free lead plating; RoHS compliant VS3522AA -30V/-30A P-Channel Advanced Power MOSFET V DS -30 V R @DS(on),TYP VGS=-10 V 22 mΩ R @DS(on),TYP VGS=-4.5 V 37 mΩ

📥 Download Datasheet

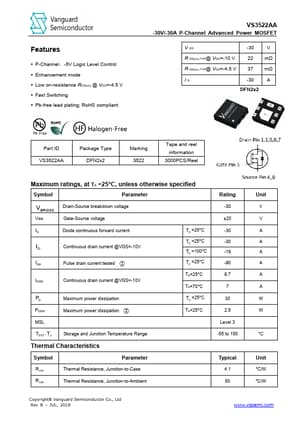

Preview of VS3522AA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3522AA
Manufacturer
Vanguard Semiconductor
File Size
794.59 KB
Datasheet
VS3522AA-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
