VS3506ATD - P-Channel Advanced Power MOSFET

Key Features

  • P-Channel，-5V Logic Level Control.
  • Enhancement mode.
  • Low on-resistance RDS(on) @ VGS=-4.5 V.
  • Fast Switching and High efficiency.
  • 100% Avalanche Tested.

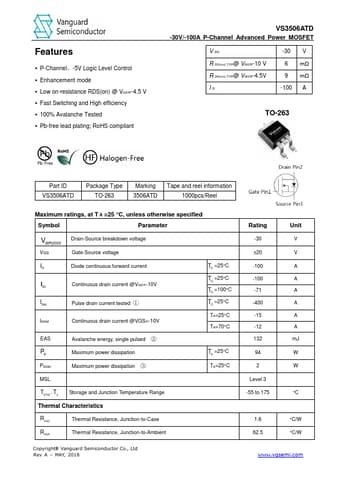

  • Pb-free lead plating; RoHS compliant VS3506ATD -30V/-100A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5V ID -30 V 6 mΩ 9 mΩ -100 A TO-263 Part ID VS3506ATD Package Type TO-263 Marking Tape and reel information 3506ATD 1000pcs/Reel Maximum ratings, at T A =25 °C, unless.
