VG2618160CJ - CMOS DRAM

Product Overview

Vanguard Microelectronics Limited

📥 Download Datasheet

VG2618160CJ CMOS DRAM by Vanguard Microelectronics Limited - Datasheet Preview — Datasheet preview – VG2618160CJ

Datasheet Details

Part number	VG2618160CJ
Manufacturer	Vanguard Microelectronics Limited
File Size	485.78 KB
Description	CMOS DRAM
Datasheet	VG2618160CJ Datasheet

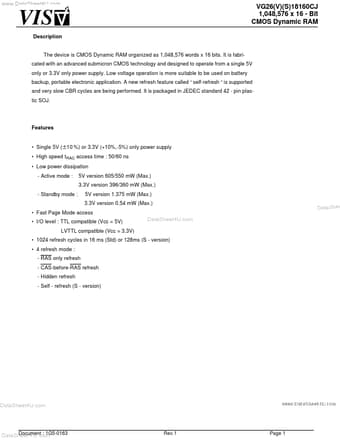

Additional preview pages of the VG2618160CJ datasheet.

Product details

Description

The device is CMOS Dynamic RAM organized as 1,048,576 words x 16 bits.

Features

Single 5V ( ± 10 %) or 3.3V (+10%,-5%) only power supply.
High speed tRAC access time : 50/60 ns.
Low power dissipation - Active mode : 5V version 605/550 mW (Max. ) 3.3V version 396/360 mW (Max. ) - Standby mode : 5V version 1.375 mW (Max. ) 3.3V version 0.54 mW (Max. ).
Fast Page Mode access.
I/O level : TTL compatible (Vcc = 5V) LVTTL compatible (Vcc = 3.3V).
1024 refresh cycles in 16 ms (Std) or 128ms (S - version).
4 refresh mode :.
