CD6312 - 0.5W Zener Diode

Download the CD6312 datasheet PDF. This datasheet also covers the CD6309 variant, as both devices belong to the same 0.5w zener diode family and are provided as variant models within a single manufacturer datasheet.

Description

This zener diode chip series is military qualified to MIL-PRF-19500/533 and is ideal for high reliability applications where a failure cannot be tolerated.

Features

  • Low reverse Leakage Characteristics.
  • Low Noise Characteristics.
  • All Junctions Completely Protected with Silicon Dioxide.
  • Electronically Equivalent to 1N6309 - 1N6349.
  • Compatible with All Wire Bonding and Die Attach Techniques.
  • JANHC, JANKC available per MIL-PRF- 19500/533.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CD6309-VPT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CD6312
Manufacturer VPT
File Size 466.27 KB
Description 0.5W Zener Diode
Datasheet download datasheet CD6312 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CD631215A POW-R-BLOK Dual SCR Powerex Power Semiconductors
CD631415A POW-R-BLOK Dual SCR Powerex Power Semiconductors
CD6315A POW-R-BLOK Dual SCR Powerex Power Semiconductors
CD631615A POW-R-BLOK Dual SCR Powerex Power Semiconductors
CD630815A POW-R-BLOK Dual SCR Powerex Power Semiconductors

Other Datasheets by VPT

Part Number Description
CD6310 0.5W Zener Diode
CD6311 0.5W Zener Diode
CD6313 0.5W Zener Diode
CD6314 0.5W Zener Diode
CD6315 0.5W Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

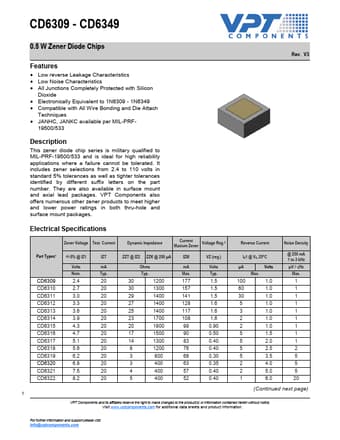

CD6309 - CD6349 0.5 W Zener Diode Chips Features • Low reverse Leakage Characteristics • Low Noise Characteristics • All Junctions Completely Protected with Silicon Dioxide • Electronically Equivalent to 1N6309 - 1N6349 • Compatible with All Wire Bonding and Die Attach Techniques • JANHC, JANKC available per MIL-PRF- 19500/533 Description This zener diode chip series is military qualified to MIL-PRF-19500/533 and is ideal for high reliability applications where a failure cannot be tolerated. It includes zener selections from 2.4 to 110 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. They are also available in surface mount and axial lead packages.
