CD4760A - Zener Diode

Download the CD4760A datasheet PDF. This datasheet also covers the CD4728A variant, as both devices belong to the same zener diode family and are provided as variant models within a single manufacturer datasheet.

Description

These 0.5 W zener diodes are electrically equivalent to the 1N4728A - 1N4764A series diodes.

They are compatible with all wire bonding and die attach techniques with the exception of solder reflow.

Rev.

Features

  • Die.
  • All Junctions Completely Protected with Silicon Dioxide.
  • 0.5 W Capability with Proper Heat Sinking.
  • Electrically Equivalent to 1N4728A - 1N4764A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CD4728A-VPT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CD4760A
Manufacturer VPT
File Size 526.66 KB
Description Zener Diode
Datasheet download datasheet CD4760A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CD4760A ZENER DIODE CHIPS Compensated Deuices Incorporated
CD4761A ZENER DIODE CHIPS Compensated Deuices Incorporated
CD4762A ZENER DIODE CHIPS Compensated Deuices Incorporated
CD4763A ZENER DIODE CHIPS Compensated Deuices Incorporated
CD4764A ZENER DIODE CHIPS Compensated Deuices Incorporated

Other Datasheets by VPT

Part Number Description
CD4761A Zener Diode
CD4762A Zener Diode
CD4763A Zener Diode
CD4764A Zener Diode
CD4700 Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

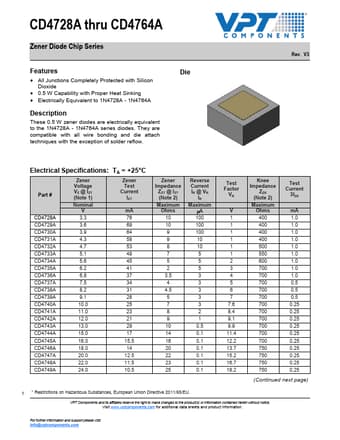

CD4728A thru CD4764A Zener Diode Chip Series Features Die • All Junctions Completely Protected with Silicon Dioxide • 0.5 W Capability with Proper Heat Sinking • Electrically Equivalent to 1N4728A - 1N4764A Description These 0.5 W zener diodes are electrically equivalent to the 1N4728A - 1N4764A series diodes. They are compatible with all wire bonding and die attach techniques with the exception of solder reflow. Rev. V3 Electrical Specifications: TA = +25°C Part # CD4728A Zener Voltage VZ @ IZT (Note 1) Nominal V 3.3 Zener Test Current lZT mA 76 CD4729A 3.6 69 CD4730A 3.9 64 CD4731A 4.3 58 CD4732A 4.7 53 CD4733A 5.1 49 CD4734A 5.6 45 CD4735A 6.2 41 CD4736A 6.8 37 CD4737A 7.5 34 CD4738A 8.2 31 CD4739A 9.1 28 CD4740A 10.0 25 CD4741A 11.
