1N6638U - Switching Diodes

Download the 1N6638U datasheet PDF. This datasheet also covers the 1N6638 variant, as both devices belong to the same switching diodes family and are provided as variant models within a single manufacturer datasheet.

Description

at any time, without notice.

VPT Components makes no commitment to update the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to its specifications and product descriptions.

Features

  • JAN, JANTX, JANTXV and JANS available per MIL-PRF-19500/578 &/609.
  • Non-Cavity Glass Package.
  • Category I Metallurgically Bonded.
  • Replacement for 1N4148-1, 1N4150-1, 1N914.
  • Very Low Capacitance.
  • Ultra Fast Recovery Time MELF (US) Axial Electrical Specifications (TA = +25oC unless otherwise specified) Part # VBR @ IR VRWM VFR / tFR @ IF = 200 mA CT1 VR = 0.0 V CT2 trr VR = 1.5 V IR= 10 mA, IF = 10 mA V(pk) µA V(pk) V(pk) ns pF.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6638-VPT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N6638U
Manufacturer VPT
File Size 851.59 KB
Description Switching Diodes
Datasheet download datasheet 1N6638U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N6638U SWITCHING DIODES Compensated Deuices Incorporated
1N6638U Switching Diodes Aeroflex
1N6638U SWITCHING / SIGNAL DIODES SENSITRON SEMICONDUCTOR
1N6638US SWITCHING DIODES Microsemi
1N6638US SWITCHING DIODES Compensated Deuices Incorporated

Other Datasheets by VPT

Part Number Description
1N6638UB Silicon Switching Diode
1N6638US Switching Diodes
1N6638 Switching Diodes
1N6639 Switching Diodes
1N6639U Switching Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

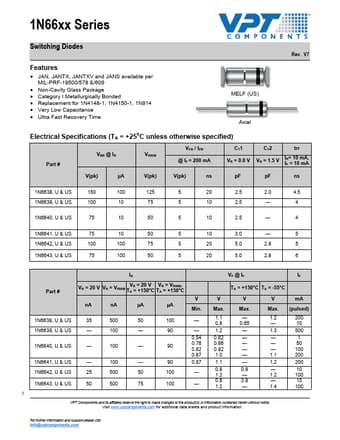

1N66xx Series Switching Diodes Rev. V7 Features • JAN, JANTX, JANTXV and JANS available per MIL-PRF-19500/578 &/609 • Non-Cavity Glass Package • Category I Metallurgically Bonded • Replacement for 1N4148-1, 1N4150-1, 1N914 • Very Low Capacitance • Ultra Fast Recovery Time MELF (US) Axial Electrical Specifications (TA = +25oC unless otherwise specified) Part # VBR @ IR VRWM VFR / tFR @ IF = 200 mA CT1 VR = 0.0 V CT2 trr VR = 1.5 V IR= 10 mA, IF = 10 mA V(pk) µA V(pk) V(pk) ns pF pF ns 1N6638, U & US 150 100 125 5 1N6639, U & US 100 10 75 5 20 2.5 2.0 4.5 10 2.5 — 4 1N6640, U & US 75 10 50 5 10 2.5 — 4 1N6641, U & US 75 10 50 5 10 3.0 — 5 1N6642, U & US 100 100 75 5 20 5.0 2.8 5 1N6643, U & US 75 100 50 5 20 5.0 2.
