1N4621UB - Low Noise Zener Diode

Product Overview

VPT

📥 Download Datasheet

1N4621UB Low Noise Zener Diode by VPT - Datasheet Preview — Datasheet preview – 1N4621UB

Datasheet Details

Part number	1N4621UB
Manufacturer	VPT
File Size	515.81 KB
Description	Low Noise Zener Diode
Datasheet	1N4621UB Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4621UB, 1N4099UB. Please refer to the document for exact specifications by model.
Additional preview pages of the 1N4621UB datasheet.

Product details

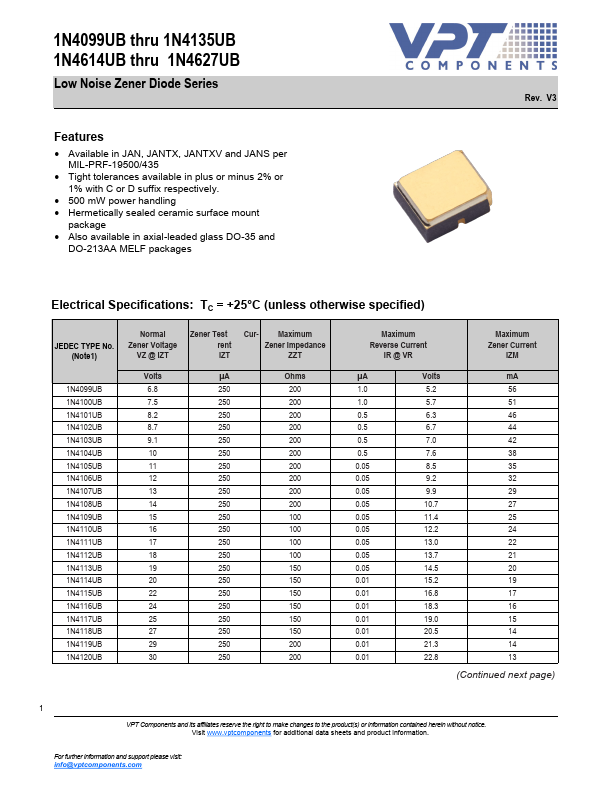

Features

Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/435.
Tight tolerances available in plus or minus 2% or 1% with C or D suffix respectively.
500 mW power handling.
Hermetically sealed ceramic surface mount package.

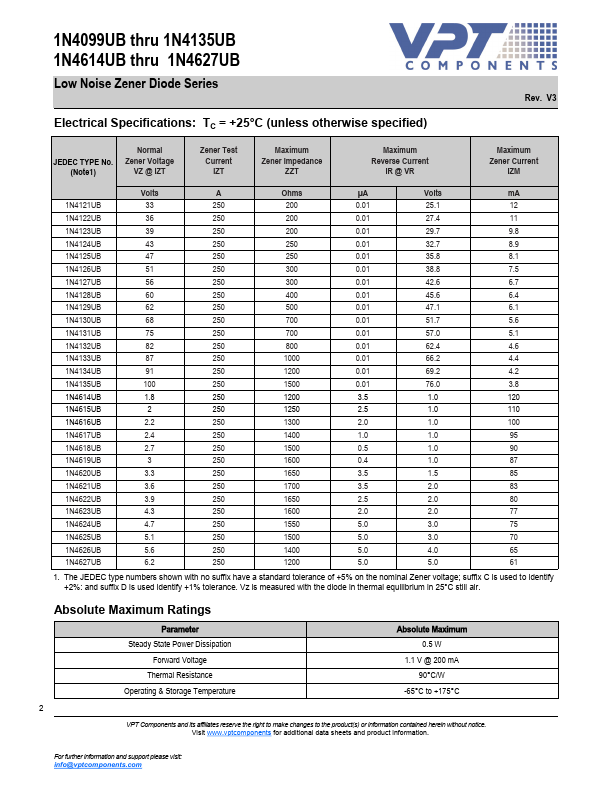

Also available in axial-leaded glass DO-35 and DO-213AA MELF packages Rev. V3 Electrical Specifications: TC = +25°C (unless otherwise specified) JEDEC TYPE No. (Note1) Normal Zener Voltage VZ @ IZT Zener Test Cur- Maximum r.
