1N4582AUR-1, 1N4565UR-1 - Zener Reference Diode

Name: 1N4582AUR-1
SKU: 1N4582AUR-1-1570257

VPT

The 1N4582AUR-1 by VPT is a Zener Reference Diode. Below is the official datasheet preview.

Datasheet Details

Part number	1N4582AUR-1, 1N4565UR-1
Manufacturer	VPT
File Size	641.72 KB
Description	Zener Reference Diode
Datasheet	1N4565UR-1-VPT.pdf
Note	This datasheet PDF includes multiple part numbers: 1N4582AUR-1, 1N4565UR-1. Please refer to the document for exact specifications by model.

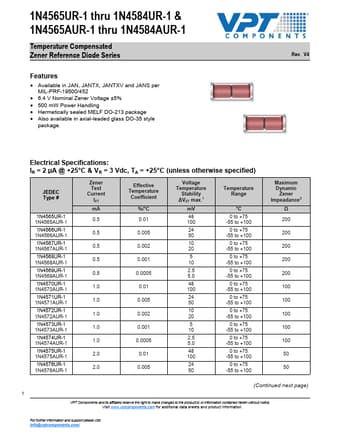

Additional preview pages of the 1N4582AUR-1 datasheet.

Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/452.
6.4 V Nominal Zener Voltage ±5%.
500 mW Power Handling.
Hermetically sealed MELF DO-213 package.
Also available in axial-leaded glass DO-35 style package. Rev. V4 Electrical Specifications: IR = 2 µA @ +25°C & VR = 3 Vdc, TA = +25°C (unless otherwise specified) JEDEC Type # 1N4565UR-1 1N4565AUR-1 1N4566UR-1 1N4566AUR-1 1N4567UR-1 1N4567AUR-1 1N4568UR-1 1N4568AUR-1 1N4569UR-1 1N4569AUR.
