Download the 1N4576AUR-1 datasheet PDF.
This datasheet also covers the 1N4565UR-1 variant, as both devices belong to the same zener reference diode family and are provided as variant models within a single manufacturer datasheet.
Features
- Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/452.
- 6.4 V Nominal Zener Voltage ±5%.
- 500 mW Power Handling.
- Hermetically sealed MELF DO-213 package.
- Also available in axial-leaded glass DO-35 style
package. Rev. V4
Electrical Specifications: IR = 2 µA @ +25°C & VR = 3 Vdc, TA = +25°C (unless otherwise specified)
JEDEC Type #
1N4565UR-1 1N4565AUR-1 1N4566UR-1 1N4566AUR-1 1N4567UR-1 1N4567AUR-1 1N4568UR-1 1N4568AUR-1
1N4569UR-1 1N4569AUR.

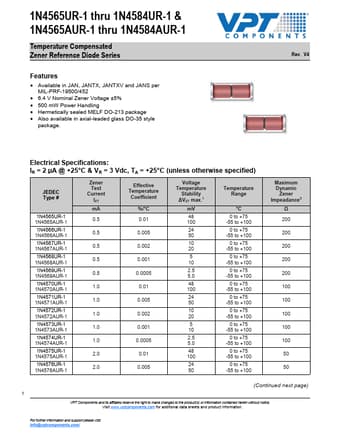

1N4576AUR-1 Datasheet
