1410F - (1410xx) Single Phase Bridge

Download the 1410F datasheet PDF. This datasheet also covers the 1410 variant, as both devices belong to the same (1410xx) single phase bridge family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1410_VMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1410F
Manufacturer VMI
File Size 121.03 KB
Description (1410xx) Single Phase Bridge
Datasheet download datasheet 1410F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1410 MOTOR Castle
1410313C Bobbin Inductor Murata
1410454C Bobbin Inductor Murata
1410460C Bobbin Inductor Murata
1410478C Bobbin Inductor Murata

Other Datasheets by VMI

Part Number Description
1410 (1410xx) Single Phase Bridge
1410UF (1410xx) Single Phase Bridge

Full PDF Text Transcription

Click to expand full text

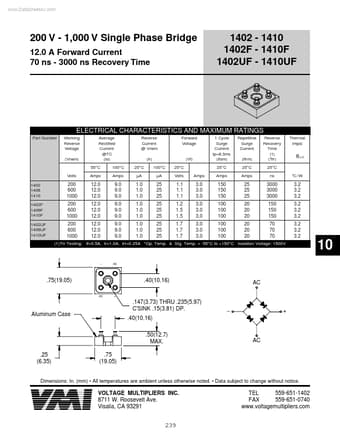

www.DataSheet4U.com 200 V - 1,000 V Single Phase Bridge 12.0 A Forward Current 70 ns - 3000 ns Recovery Time 1402 - 1410 1402F - 1410F 1402UF - 1410UF ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current @TC (Io) 55°C Volts 1402 1406 1410 1402F 1406F 1410F 1402UF 1406UF 1410UF Amps 100°C Amps Reverse Current @ Vrwm (Ir) 25°C µA 100°C µA 25°C Volts Amps Forward Voltage 1 Cycle Surge Current tp=8.3ms (Ifsm) 25°C Amps Repetitive Surge Current (Ifrm) 25°C Amps Reverse Recovery Time (1) (Trr) 25°C ns °C / W Thermal Impd. (Vf) uJ-C 200 600 1000 200 600 1000 200 600 1000 12.0 12.0 12.0 12.0 12.0 12.0 12.0 12.0 12.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 25 25 25 25 25 25 25 25 25 1.1 1.1 1.
