VS1005g - Audio Processing Platform IC

Datasheet Summary

Description

18 6.1 QFN-88 Package, Current: VS1005g from Circa 2017

6.2 LFGA-88 Package, OBSOLETE2: VS1005g, Datecode 1407 to Y2017-2020 .

.

.

.

.

Features

  • Three channels of 24-bit audio ADC.
  • Two 24-bit audio DACs.
  • Stereo earphone driver for 30 Ω load.
  • Internal microphone amplifiers.
  • Stereo FM radio receiver with RDS.
  • 10-bit ADC, 3-5 external inputs.
  • Operation from single power supply, four programmable internal regulators.

📥 Download Datasheet

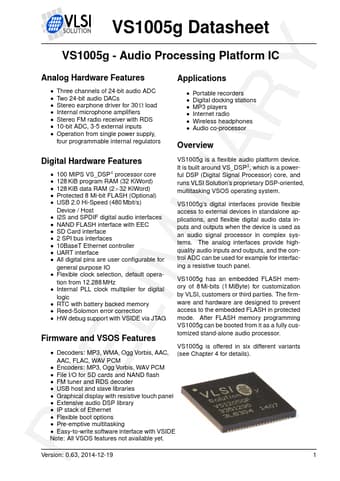

Datasheet preview – VS1005g

Datasheet Details

Part number VS1005g
Manufacturer VLSI
File Size 3.32 MB
Description Audio Processing Platform IC
Datasheet download datasheet VS1005g Datasheet

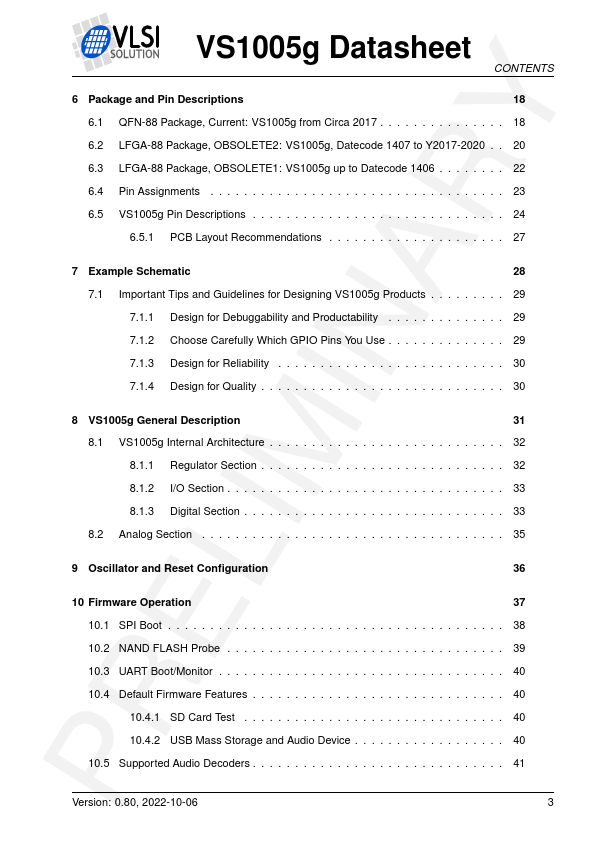

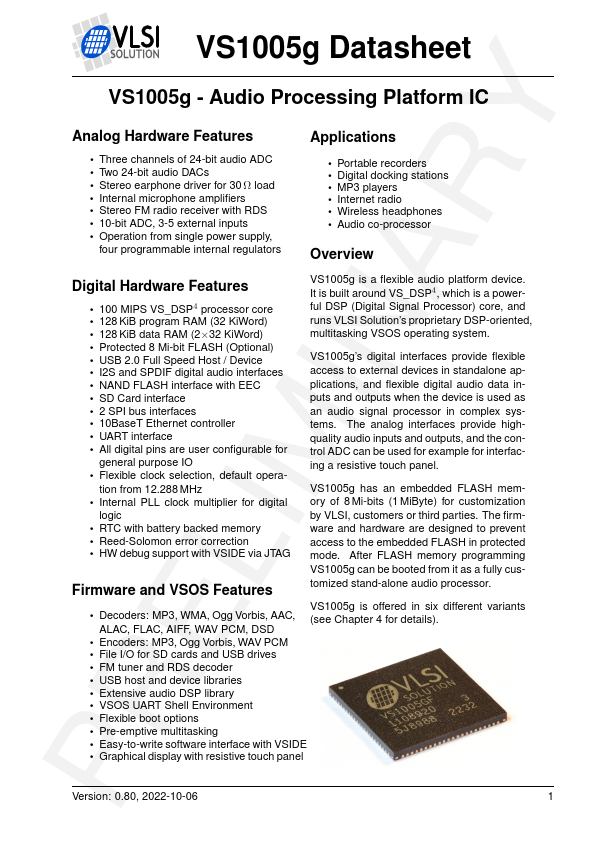

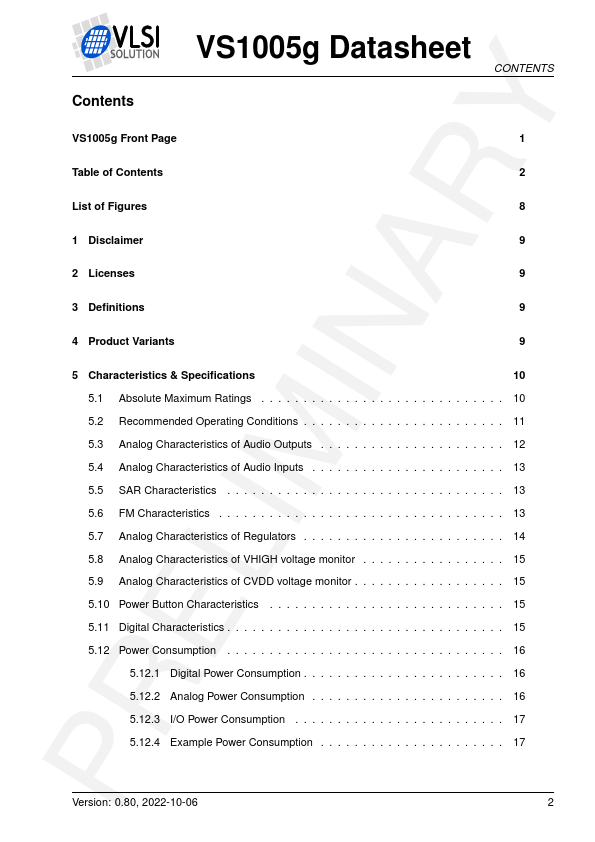

Additional preview pages of the VS1005g datasheet.
