VEL10303R8107G - Capacitor

Product Overview

Part number	VEL10303R8107G
Manufacturer	VINATech
File Size	143.54 KB
Description	Capacitor
Datasheet	VEL10303R8107G Datasheet
Note	This datasheet PDF includes multiple part numbers: VEL10303R8107G, VEL08203R8306G. Please refer to the document for exact specifications by model.
Additional preview pages of the VEL10303R8107G datasheet.

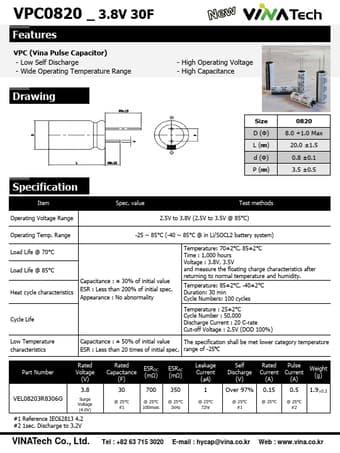

VPC (Vina Pulse Capacitor) - Low Self Discharge - Wide Operating Temperature Range - High Operating Voltage - High Capacitance Drawing Size D (Φ) L (㎜) d (Φ) P (㎜) 0820 8.0 +1.0 Max 20.0 ± 1.5 0.8 ± 0.1 3.5 ± 0.5 Specification Item Operating Voltage Range Spec. value Test methods 2.5V to 3.8V (2.5V to 3.5V @ 85℃) Operating Temp. Range -25 ~ 85℃ (-40 ~ 85℃ @ in Li/SOCL2 battery system) Load Life @ 70℃ Load Life @ 85℃ Heat cycle characteristics Capacitance : ± 30% of initial value ES.
