W20NM60 N-Channel 650V Power MOSFET

W20NM60 Description

W20NM60-VB www.VBsemi.com W20NM60-VB Datasheet N-Channel 650 V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at 25 .

W20NM60 Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

W20NM60 Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial - Welding - Induction heating - Motor drives - Batter

📥 Download Datasheet

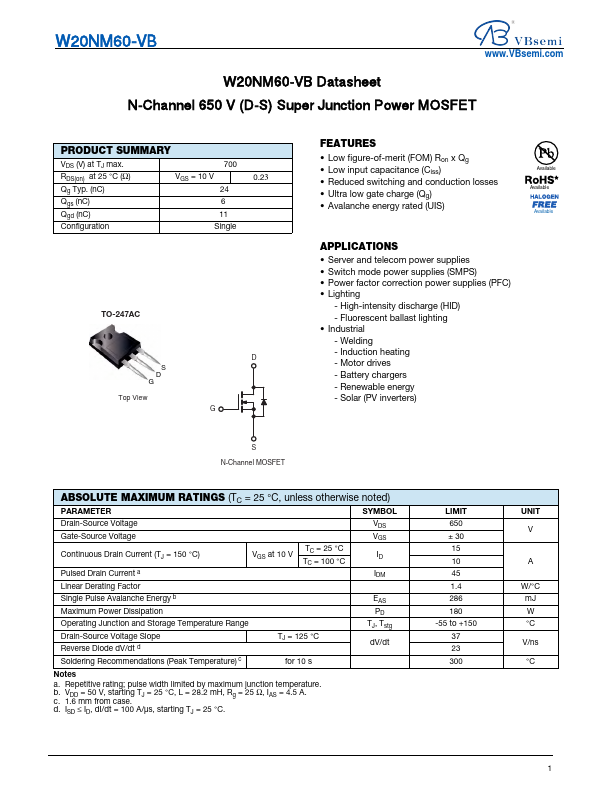

Preview of W20NM60 PDF

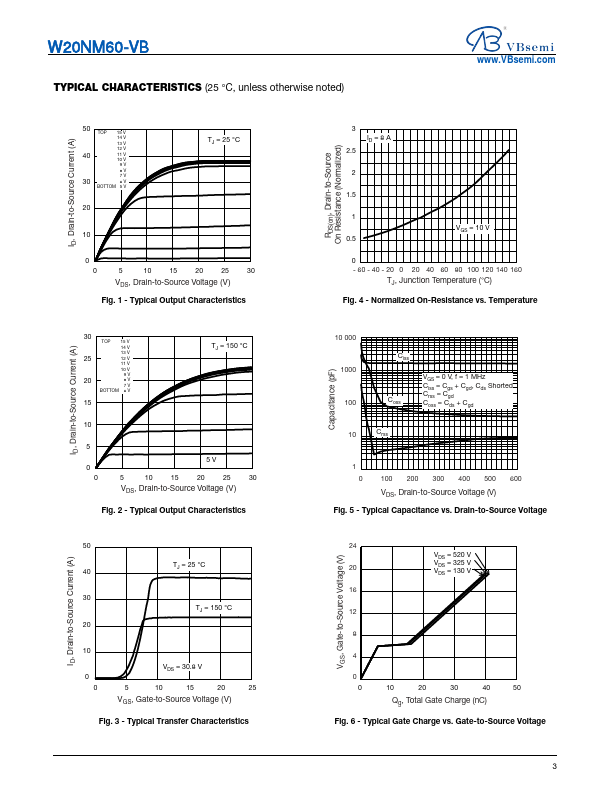

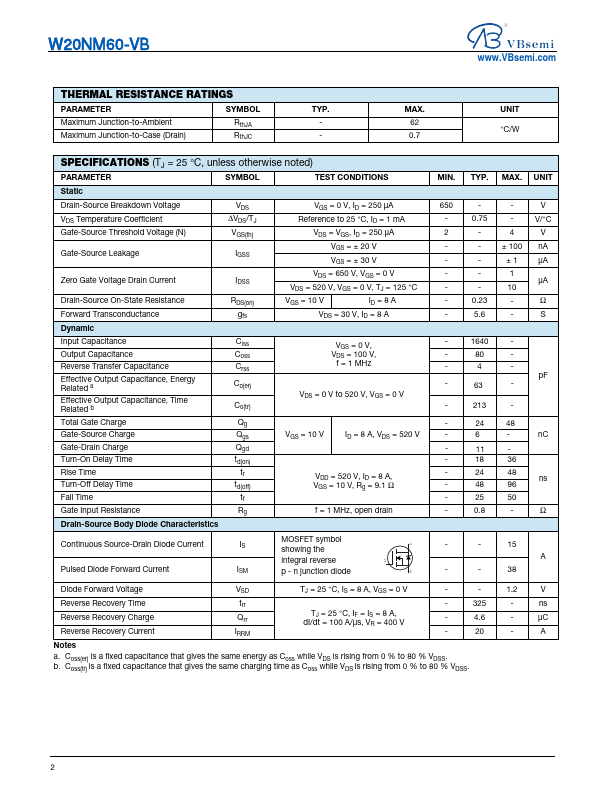

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W20NM60
Manufacturer
VBsemi
File Size
260.37 KB
Datasheet
W20NM60-VBsemi.pdf
Description
N-Channel 650V Power MOSFET
