VBZ2302 N-Channel MOSFET

VBZ2302 Description

VBZ2302 N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 20 RDS(on) (Ω) Max.0.045 at VGS = 4.5 V 0.056 at VGS = 2.5 V ID (A) .

VBZ2302 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

VBZ2302 Applications

* Load Switching for Portable Devices
* DC/DC Converter TO-236 (SOT-23) G1 S2 3D Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol 5s Steady State Unit Drain-Source Voltage Gate-Source Voltage VDS 20 V VGS ±8 Continuous Drain Cur

📥 Download Datasheet

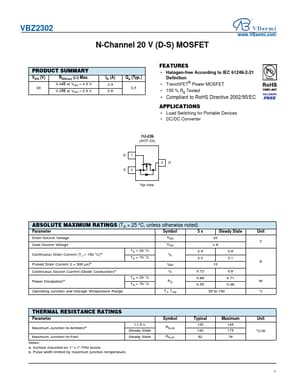

Preview of VBZ2302 PDF
